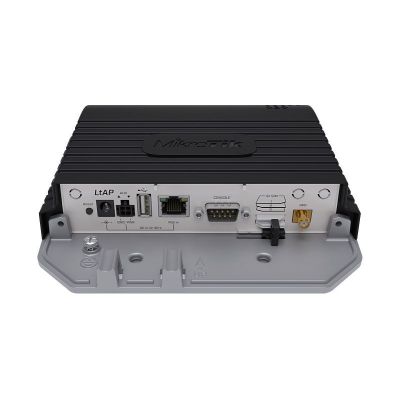

MikroTik LtAP Outdoor 2.4 GHz Access Point with GPS & Dual miniPCIe
Rugged 2.4 GHz Wi-Fi access point with an IP54-rated enclosure, Gigabit Ethernet, GPS support, two miniPCIe expansion slots and three Mini-SIM slots. Supports DC, passive PoE and automotive power, making it suitable for vehicles, outdoor installations and remote sites. LTE and 5 GHz connectivity require optional expansion modules.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik LtAP (RBLtAP-2HnD) is a compact, rugged wireless access point designed for vehicles, outdoor installations and remote networking. Its IP54-rated enclosure and tested operating temperature range of −40°C to +70°C make it suitable for demanding environments, including public transportation, food trucks and logistics applications.
**Built-in Wi-Fi and Gigabit Ethernet**
Connect wireless devices using built-in 2.4 GHz Wi-Fi 4 (802.11b/g/n), with two wireless chains and a maximum wireless data rate of 300 Mbps. A Gigabit Ethernet port provides connectivity for wired equipment.
**Flexible expansion**
Two miniPCIe slots allow you to add compatible modules to suit your installation. Install an optional LTE modem for cellular connectivity or backup, or add a compatible 5 GHz wireless card to expand your wireless coverage. Three Mini-SIM slots provide flexibility for SIM selection and roaming management when used with a compatible modem.
LTE modems and 5 GHz wireless cards are optional and are not included with this model.
**GPS and peripheral connectivity**
GPS support enables location tracking for vehicle and fleet applications. An RS232 serial console port provides access for debugging, while a full-size USB Type-A port supports additional peripherals.
**Three power options**
Choose the power source that suits your installation:
- DC jack: 12–30 V
- Passive PoE input: 12–30 V
- Automotive input: 12–27 V
Maximum power consumption is 9 W without attachments and up to 24 W with attachments.
**Powered by RouterOS**
The LtAP features a dual-core 880 MHz MT7621A processor, 128 MB RAM and 16 MB flash storage. RouterOS comes preinstalled with a Level 4 licence, providing routing and network management capabilities without a separate operating system purchase.
**Key specifications**
- Product code: RBLtAP-2HnD
- Wireless: 2.4 GHz 802.11b/g/n, up to 300 Mbps
- Antenna gain: 2.5 dBi
- Ethernet: 1 × 10/100/1000 Mbps port
- Expansion: 2 × miniPCIe slots
- SIM slots: 3 × Mini-SIM
- USB: 1 × USB Type-A, maximum current 1 A
- Serial console: RS232
- Location support: GPS
- Enclosure rating: IP54
- Operating temperature: −40°C to +70°C
- Cooling: Passive
**Included in the box**
- MikroTik LtAP access point
- 24 V, 1.2 A power supply
- 0.35 m four-pin automotive adapter cable
- K-67 fastening set
- Thermal pads set
- Product code
- RBLtAP-2HnD
- CPU
- MT7621A
- CPU core count
- 2
- CPU nominal frequency
- 880 MHz
- Architecture
- MMIPS
- Size of RAM
- 128MB
- Storage size
- 16MB
- Storage type
- FLASH
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Antenna gain dBi for 2.4 GHz
- 2.5
- RouterOS License
- 4
- Max Power consumption
- 24W
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 3 (DC jack, PoE-IN, Automotive)
- DC jack input Voltage
- 12-30 V
- Max power consumption without attachments
- 9W
- PoE in
- Passive PoE
- PoE in input Voltage
- 12-30 V
- 10/100/1000 Ethernet ports
- 1
- CPU Threads count
- 4
- Number of SIM slots
- 3 Modem (Mini SIM)
- Number of USB ports
- 1
- USB Power Reset
- yes
- USB slot type
- USB type A
- Max USB current (A)
- 1
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
- Wireless 2.4 GHz Max data rate
- 300 Mbit/s
- Wireless 2.4 GHz number of chains
- 2
- Wireless 2.4 GHz chip model
- AR9382
- MiniPCI-e slots
- 2
- Automotive input Voltage
- 12-30 V
- Serial port
- RS232
- Wireless 2.4 GHz generation
- Wi-Fi 4
- Certification
- CE/RED, FCC, IC, E-MARK, EAC, ROHS
