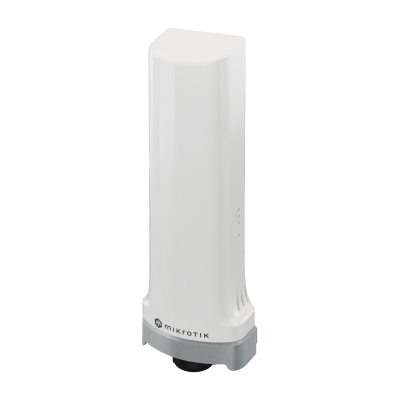

MikroTik KNOT Gateway HL9 IoT Gateway – 915 MHz Wi-Fi HaLow, LTE Cat 1 bis, BLE 5.1, IP66
MikroTik KNOT Gateway HL9 connects sensors, meters and Bluetooth tags using BLE 5.1 and 915 MHz Wi-Fi HaLow. Send data through Gigabit Ethernet, 2.4 GHz Wi-Fi or LTE Cat 1 bis. Its IP66 enclosure, GNSS positioning, Nano SIM and eSIM support suit warehouses, terminals and remote monitoring. RouterOS v7 supports scripting and MQTT or HTTP integration. Power it through 802.3af/at PoE-in or a 12–57 V terminal input.
US/Canada
We only offer IC Certified products. For international products, contact us.
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
MikroTik KNOT Gateway HL9 brings sensors, meters and tagged assets into an IoT network using BLE 5.1 and 915 MHz Wi-Fi HaLow.
Long-range connectivity for your deployment
This version uses the FGH100MABMD HaLow modem at 915 MHz and the EG800Q-NA LTE modem.
Flexible backhaul and positioning
Use the Gigabit Ethernet port, 2.4 GHz 802.11b/g/n/ax Wi-Fi or LTE Cat 1 bis for backhaul. GNSS supports positioning. Nano SIM and eSIM support, including MikroTik Connectivity, provide cellular deployment options.
Local processing with RouterOS
RouterOS v7 with a level 4 licence supports local data filtering, scripts and MQTT or HTTP integration. Use sensor readings and Bluetooth broadcasts in your own monitoring dashboards and notification workflows.
Rugged enclosure and flexible power
The IP66 enclosure, surge protection and integrated antennas support deployment close to your devices. External antenna connectors are available for BLE and Sub-GHz. Power options include 18–57 V 802.3af/at PoE-in and a 12–57 V two-pin terminal.
Key specifications
- Product code: L14G-2ax-BT5-HL9&EG800Q
- CPU: IPQ-5010
- CPU core count: 2
- CPU nominal frequency: 800 MHz
- Architecture: ARM 64-bit
- Size of RAM: 256 MB
- RAM type: DDR3L
- Storage size: 128 MB
- Storage type: NAND
- Number of 1G Ethernet ports: 1
- Wireless 2.4 GHz standards: 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz: 3.9
- GNSS interface model: AG3352Q
- Bluetooth version: 5.1
- Bluetooth antenna gain: 2.5 dBi
- LTE Category: Cat 1 bis
- LTE data rate (Mbps): DL 10, UL 5
- MIMO DL: 1x1
- MIMO UL: 1x1
- SIM slots: 1 Nano SIM
- Additional connectivity: eSIM, MikroTik Connectivity
- Dimensions: 254 x 88 x 57 mm
- Operating System: RouterOS v7
- RouterOS License: 4
- Operating Temperature: -40°C to +50°C
- Number of DC inputs: 2 (PoE-In, 2-pin terminal)
- PoE-In input Voltage: 18–57 V
- 2-pin terminal input Voltage: 12–57 V
- Power adapter nominal voltage: 24 V
- Power adapter nominal current: 0.5 A
- PoE-In: 802.3af/at
- Max Power consumption: 9 W
- IP rating: IP66
- Antenna: Integrated BLE, Wi-Fi, LTE, Sub-GHz and GNSS antennas
- Antenna connector: External antenna connectors for BLE and Sub-GHz
- ESD/EMP protection: Surge protection
- Protocols: MQTT, HTTP
- Included Parts: 24 V 0.5 A power adapter, fastening set, hose clamp, Gigabit PoE injector
- LTE modem: EG800Q-NA
- TAC: 01688100
- LTE FDD bands: 2 (1900 MHz), 4 (1700 MHz), 5 (850 MHz), 12 (700 MHz), 13 (700 MHz), 66 (1700 MHz)
- HaLow modem: FGH100MABMD
- HaLow band: 915 MHz
- HaLow antenna gain: 5.4 dBi
- Wireless Standards: Wi-Fi HaLow IEEE 802.11ah
- Product code
- L14G-2ax-BT5-HL9&EG800Q
- CPU
- IPQ-5010
- CPU core count
- 2
- CPU nominal frequency
- 800 MHz
- Dimensions
- 254 x 88 x 57 mm
- Architecture
- ARM 64-bit
- Operating Temperature
- -40°C to +50°C
- Size of RAM
- 256 MB
- RAM type
- DDR3L
- Storage size
- 128 MB
- Storage type
- NAND
- Number of 1G Ethernet ports
- 1
- Wireless 2.4 GHz standards
- 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz
- 3.9
- GNSS interface model
- AG3352Q
- Bluetooth version
- 5.1
- Bluetooth antenna gain
- 2.5 dBi
- LTE Category
- Cat 1 bis
- LTE data rate (Mbps)
- DL 10, UL 5
- MIMO DL
- 1x1
- MIMO UL
- 1x1
- SIM slots
- 1 Nano SIM
- Additional connectivity
- eSIM, MikroTik Connectivity
- Operating System
- RouterOS v7
- RouterOS License
- 4
- Number of DC inputs
- 2 (PoE-In, 2-pin terminal)
- PoE-In input Voltage
- 18–57 V
- 2-pin terminal input Voltage
- 12–57 V
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 0.5 A
- PoE-In
- 802.3af/at
- Max Power consumption
- 9 W
- IP rating
- IP66
- Antenna
- Integrated BLE, Wi-Fi, LTE, Sub-GHz and GNSS antennas
- Antenna connector
- External antenna connectors for BLE and Sub-GHz
- ESD/EMP protection
- Surge protection
- Protocols
- MQTT, HTTP
- Included Parts
- 24 V 0.5 A power adapter, fastening set, hose clamp, Gigabit PoE injector
- LTE modem
- EG800Q-NA
- TAC
- 01688100
- LTE FDD bands
- 2 (1900 MHz), 4 (1700 MHz), 5 (850 MHz), 12 (700 MHz), 13 (700 MHz), 66 (1700 MHz)
- HaLow modem
- FGH100MABMD
- HaLow band
- 915 MHz
- HaLow antenna gain
- 5.4 dBi
- Wireless Standards
- Wi-Fi HaLow IEEE 802.11ah
