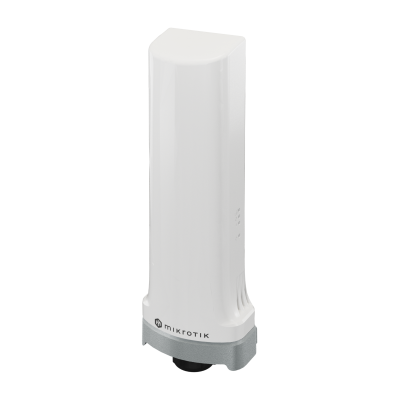

MikroTik KNOT Gateway LR8 IoT Gateway – 868 MHz LoRa, LTE Cat 1 bis, BLE 5.1, IP66
MikroTik KNOT Gateway LR8 connects sensors, meters and Bluetooth tags using BLE 5.1 and 868 MHz LoRa. Send data through Gigabit Ethernet, 2.4 GHz Wi-Fi or LTE Cat 1 bis. Its IP66 enclosure, GNSS positioning, Nano SIM and eSIM support suit warehouses, terminals and remote monitoring. RouterOS v7 supports scripting and MQTT or HTTP integration. Power it through 802.3af/at PoE-in or a 12–57 V terminal input.
US/Canada
We only offer IC Certified products. For international products, contact us.
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
MikroTik KNOT Gateway LR8 brings sensors, meters and tagged assets into an IoT network using BLE 5.1 and 868 MHz LoRa.
Long-range connectivity for your deployment
This version uses the SX1303 LoRa transceiver at 868 MHz and the EG800K-EU LTE modem.
Flexible backhaul and positioning
Use the Gigabit Ethernet port, 2.4 GHz 802.11b/g/n/ax Wi-Fi or LTE Cat 1 bis for backhaul. GNSS supports positioning. Nano SIM and eSIM support, including MikroTik Connectivity, provide cellular deployment options.
Local processing with RouterOS
RouterOS v7 with a level 4 licence supports local data filtering, scripts and MQTT or HTTP integration. Use sensor readings and Bluetooth broadcasts in your own monitoring dashboards and notification workflows.
Rugged enclosure and flexible power
The IP66 enclosure, surge protection and integrated antennas support deployment close to your devices. External antenna connectors are available for BLE and Sub-GHz. Power options include 18–57 V 802.3af/at PoE-in and a 12–57 V two-pin terminal.
Key specifications
- Product code: L14G-2ax-BT5-LR8&EG800K
- CPU: IPQ-5010
- CPU core count: 2
- CPU nominal frequency: 800 MHz
- Architecture: ARM 64-bit
- Size of RAM: 256 MB
- RAM type: DDR3L
- Storage size: 128 MB
- Storage type: NAND
- Number of 1G Ethernet ports: 1
- Wireless 2.4 GHz standards: 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz: 3.9
- GNSS interface model: AG3352Q
- Bluetooth version: 5.1
- Bluetooth antenna gain: 2.5 dBi
- LTE Category: Cat 1 bis
- LTE data rate (Mbps): DL 10, UL 5
- MIMO DL: 1x1
- MIMO UL: 1x1
- SIM slots: 1 Nano SIM
- Additional connectivity: eSIM, MikroTik Connectivity
- Dimensions: 254 x 88 x 57 mm
- Operating System: RouterOS v7
- RouterOS License: 4
- Operating Temperature: -40°C to +50°C
- Number of DC inputs: 2 (PoE-In, 2-pin terminal)
- PoE-In input Voltage: 18–57 V
- 2-pin terminal input Voltage: 12–57 V
- Power adapter nominal voltage: 24 V
- Power adapter nominal current: 0.5 A
- PoE-In: 802.3af/at
- Max Power consumption: 9 W
- IP rating: IP66
- Antenna: Integrated BLE, Wi-Fi, LTE, Sub-GHz and GNSS antennas
- Antenna connector: External antenna connectors for BLE and Sub-GHz
- ESD/EMP protection: Surge protection
- Protocols: MQTT, HTTP
- Included Parts: 24 V 0.5 A power adapter, fastening set, hose clamp, Gigabit PoE injector
- LTE modem: EG800K-EU
- TAC: 86684606
- LTE FDD bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
- LoRa transceiver: SX1303
- LoRa band: 868 MHz
- LoRa antenna gain: 5.0 dBi
- Product code
- L14G-2ax-BT5-LR8&EG800K
- CPU
- IPQ-5010
- CPU core count
- 2
- CPU nominal frequency
- 800 MHz
- Dimensions
- 254 x 88 x 57 mm
- Architecture
- ARM 64-bit
- Operating Temperature
- -40°C to +50°C
- Size of RAM
- 256 MB
- RAM type
- DDR3L
- Storage size
- 128 MB
- Storage type
- NAND
- Number of 1G Ethernet ports
- 1
- Wireless 2.4 GHz standards
- 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz
- 3.9
- GNSS interface model
- AG3352Q
- Bluetooth version
- 5.1
- Bluetooth antenna gain
- 2.5 dBi
- LTE Category
- Cat 1 bis
- LTE data rate (Mbps)
- DL 10, UL 5
- MIMO DL
- 1x1
- MIMO UL
- 1x1
- SIM slots
- 1 Nano SIM
- Additional connectivity
- eSIM, MikroTik Connectivity
- Operating System
- RouterOS v7
- RouterOS License
- 4
- Number of DC inputs
- 2 (PoE-In, 2-pin terminal)
- PoE-In input Voltage
- 18–57 V
- 2-pin terminal input Voltage
- 12–57 V
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 0.5 A
- PoE-In
- 802.3af/at
- Max Power consumption
- 9 W
- IP rating
- IP66
- Antenna
- Integrated BLE, Wi-Fi, LTE, Sub-GHz and GNSS antennas
- Antenna connector
- External antenna connectors for BLE and Sub-GHz
- ESD/EMP protection
- Surge protection
- Protocols
- MQTT, HTTP
- Included Parts
- 24 V 0.5 A power adapter, fastening set, hose clamp, Gigabit PoE injector
- LTE modem
- EG800K-EU
- TAC
- 86684606
- LTE FDD bands
- 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
- LoRa transceiver
- SX1303
- LoRa band
- 868 MHz
- LoRa antenna gain
- 5.0 dBi
