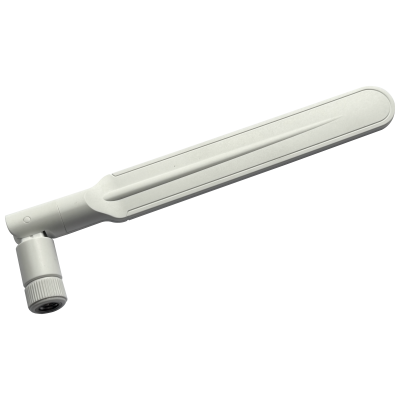

MikroTik LGO-LTE-W Compact LTE and LoRa Antenna – 617–5925 MHz, 3 dBi, SMA Male
MikroTik LGO-LTE-W is a compact antenna for LTE and LoRa connectivity, covering 617–5925 MHz with 3 dBi gain and an SMA male connector. Measuring 172 x 19 x 13 mm, it suits space-limited IoT installations such as industrial cabinets, vending machines and remote monitoring equipment. MikroTik recommends it for KNOT LR8G and LR9G kits, KNOT Embedded LTE and KNOT Embedded LTE4 Global.
US/Canada
We only offer IC Certified products. For international products, contact us.
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
MikroTik LGO-LTE-W (DPD0830AL08) is a compact antenna for LTE and LoRa connectivity in installations where space is limited. It covers 617–5925 MHz, provides 3 dBi gain and uses an SMA male connector.
Compact fit for IoT equipment
With a smaller footprint than HGO-LTE-W and dimensions of 172 x 19 x 13 mm, LGO-LTE-W is suited to vending and coffee machines, industrial cabinets, remote monitoring, cold-chain equipment and asset-tracking installations.
Recommended KNOT devices
MikroTik recommends this antenna for KNOT LR8G and LR9G kits, KNOT Embedded LTE and KNOT Embedded LTE4 Global. Its compact dimensions are particularly useful with the smaller KNOT Embedded form factor.
Key specifications
- Product code: DPD0830AL08
- Frequency Range: 617–5925 MHz
- Antenna gain: 3 dBi
- Connector: SMA male
- Dimensions: 172 x 19 x 13 mm
- Operating Temperature: -30°C to +75°C
- Product code
- DPD0830AL08
- Frequency Range
- 617–5925 MHz
- Antenna gain
- 3 dBi
- Connector
- SMA male
- Dimensions
- 172 x 19 x 13 mm
- Operating Temperature
- -30°C to +75°C
