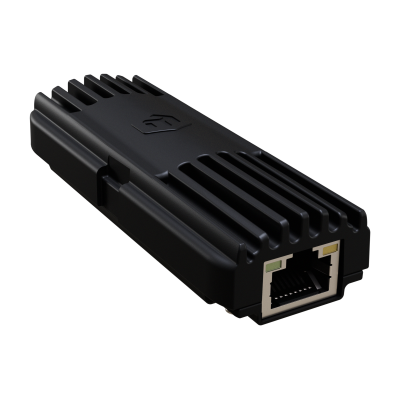

MikroTik GPOE-CON-mini 48V to 24V Passive PoE Converter – 2.5G
The MikroTik GPOE-CON-mini is a compact PoE converter designed to power 24V Passive PoE devices from standard 48–57V 802.3af/at PoE infrastructure. It eliminates the need to replace switches, add separate PoE injectors, or run additional power cables. With support for network speeds up to 2.5 Gigabit, a rugged compact enclosure, and an operating temperature range of -40°C to +70°C, it is ideal for indoor and outdoor network deployments.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik GPOE-CON-mini is a compact PoE voltage converter that allows standard 48–57V IEEE 802.3af/at PoE infrastructure to power devices requiring 24V Passive PoE.
Instead of replacing an existing PoE switch, installing another injector, or running a separate power cable, the GPOE-CON-mini can be installed inline between the network switch and the 24V Passive PoE device. It receives standard PoE input and converts it to 24V Passive PoE output at up to 0.5A.
It is especially useful when deploying compatible MikroTik equipment such as LHG, SXTsq, Groove, and NetBox ax at locations where only standard 48V PoE infrastructure is available. A single Ethernet cable can carry both network connectivity and power to the installation point while the GPOE-CON-mini handles the voltage conversion.
The converter supports network speeds of up to 2.5 Gigabit, making it suitable for modern high-speed network installations. Its compact 87 × 33 × 20 mm enclosure makes it easy to install in tight spaces, and it is designed to fit inside the MikroTik GPeR-IP67-Case for outdoor applications.
With a wide operating temperature range from -40°C to +70°C, the GPOE-CON-mini is well suited for demanding network environments where reliable PoE conversion is required.
Key Features
- Converts 48–57V PoE input to 24V Passive PoE output
- Supports IEEE 802.3af/at PoE input
- 24V Passive PoE output
- Output current up to 0.5A
- Supports network speeds up to 2.5 Gigabit
- Compact inline design
- Dimensions: 87 × 33 × 20 mm
- Operating temperature: -40°C to +70°C
- Eliminates the need for separate PoE injectors
- Allows use of 24V Passive PoE devices with standard 48V PoE switches
- Compatible with the GPeR-IP67-Case
- Suitable for indoor and outdoor network deployments
- Fastening set included
- Product code
- GPOE-CON-mini
- DC jack input Voltage
- 48-57 V
- PoE in
- 802.3af/at
- Total output current
- 0.5 A
- Dimensions
- 87 x 33 x 20 mm
- Operating Temperature
- -40°C to +70°C
- Output Voltage
- 24V
- DC input
- PoE-In
- PoE-Out
- Passive PoE
- Number of 1G Ethernet ports
- 1
