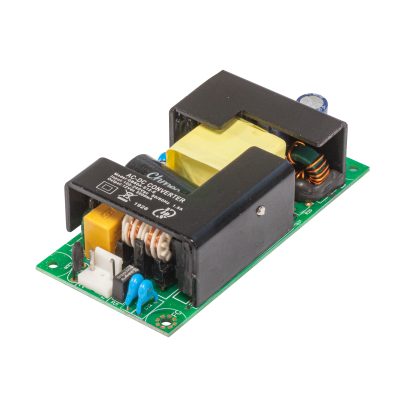

MikroTik GB60A-S12 12V 5A Internal PSU CCR1016 CRS

The MikroTik GB60A-S12 is the internal replacement power supply for four specific MikroTik platforms: the CCR1016 series (r2 revision with dual PSU slots only), the CCR2004-1G-12S+2XS, the CRS312-4C+8XG-RM, and the CRS354-48G-4S+2Q+RM. If your deployment runs any of these devices and the internal PSU fails or degrades, the GB60A-S12 is the correct replacement. At USD 29.00, there is no reason to run a compatible device without a spare on the shelf.

The CCR1016 r2 dual PSU architecture is why this product exists. MikroTik introduced dual power supply support in the "r2" revision of the CCR1016 series — meaning the second PSU slot, which was unpopulated at the factory, accepts a GB60A-S12 as a live redundancy upgrade. If you are running a CCR1016 r2 with only one PSU installed, adding a GB60A-S12 in the second slot delivers hot-swap redundancy: if the primary PSU fails, the secondary takes over immediately with no router reboot, no service interruption, and no traffic drop. At USD 29.00, this is the single highest-value reliability upgrade available for a CCR1016 r2 deployment.

The CCR2004-1G-12S+2XS and the CRS series devices (CRS312-4C+8XG-RM, CRS354-48G-4S+2Q+RM) use the GB60A-S12 as a direct replacement unit. If the factory-fitted PSU in any of these chassis fails, the GB60A-S12 slides in as the replacement — same form factor, same connector, same output spec.

The 12V, 5A output is matched to the power architecture of the compatible chassis. Do not substitute a higher-wattage or incompatible PSU — the GB60A-S12 is matched to the specific power delivery design of these platforms.

**Compatibility is strict.** The GB60A-S12 is compatible with:

- **CCR1016 series — r2 revisions with dual power supplies only.** Check the device label for the "r2" revision suffix AND confirm the chassis has a second PSU slot. Pre-r2 CCR1016 units and CCR1016 r2 units without dual PSU capability are NOT compatible.

- **CCR2004-1G-12S+2XS** — direct replacement PSU.

- **CRS312-4C+8XG-RM** — direct replacement PSU.

- **CRS354-48G-4S+2Q+RM** — direct replacement PSU.

Do not install in any other device. Confirm exact device revision and model before ordering.

Key specifications:

- Output voltage: 12V, 5A

- Form factor: Internal (chassis-installed)

- MTBF: ~100,000 hours at 25°C

- Tested ambient temperature: -20°C to +70°C

- Compatible devices: CCR1016 series (r2, dual PSU), CCR2004-1G-12S+2XS, CRS312-4C+8XG-RM, CRS354-48G-4S+2Q+RM

- Product code: GB60A-S12

- Suggested price: USD 29.00

Note: This is an internal replacement power supply module. It is not a standalone device. For use inside compatible MikroTik CCR and CRS chassis only. Verify CCR1016 revision "r2" with dual PSU slot before ordering.
