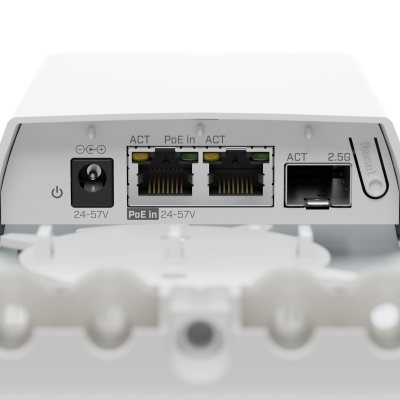

MikroTik FTC21 IP55 Fiber-to-Copper Converter SwOS Lite
The MikroTik FTC21 is a weatherproof IP55 Fiber-to-Copper media converter with smart management capabilities powered by SwOS Lite. It bridges a single SFP/SFP+ fiber port (with 2.5G support) to a Gigabit Ethernet copper port, and goes beyond simple media conversion by offering interface monitoring, VLAN support, SNMP reporting, basic traffic shaping, and advanced Access Control Lists. Housed in a passively cooled, outdoor-rated enclosure, it is suitable for both indoor and harsh outdoor deployments. The kit includes a PoE injector, 48V power adapter, and mounting hardware.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik FTC21 is a compact, IP55-rated Fiber-to-Copper media converter designed for outdoor and demanding environments. It converts between a fiber SFP/SFP+ interface — supporting speeds up to 2.5G — and a 10/100/1000 Gigabit Ethernet copper port, making it ideal for extending fiber connectivity to copper-based devices at the network edge.
What sets the FTC21 apart from a basic media converter is its intelligent management layer, running SwOS Lite on a Marvell 88E6341 switch chip. This provides a meaningful set of network management features including interface monitoring and management, VLAN support, SNMP reporting, basic traffic shaping, and advanced packet filtering via Access Control Lists — enabling packet filtering, accounting, and traffic classification directly on the device.
Power is flexible, with support for both passive PoE and 802.3af/at standards over the Ethernet port, as well as a DC jack input. Both accept a wide input voltage range of 24–57 V. Maximum power consumption is just 4 W (3 W without attachments), and the device uses entirely passive cooling — meaning no moving parts and silent operation.
The IP55-rated enclosure and tested operating range of -40°C to 70°C make the FTC21 suitable for outdoor installation and temperature-extreme environments. It ships complete with a Gigabit PoE injector, a 48V 0.95A power adapter, and a K-81 fastening set for mounting.
Key Specifications at a Glance
- Product Code: FTC21
- Switch Chip: 88E6341
- Management: SwOS Lite
- SFP Port: 1x SFP/SFP+ (2.5G supported)
- Ethernet Port: 1x 10/100/1000 Gigabit
- Power Inputs: DC jack 24–57 V, PoE-in 24–57 V (802.3af/at)
- Max Power Consumption: 4 W (3 W without attachments)
- Cooling: Passive
- IP Rating: IP55
- Tested Ambient Temperature: -40°C to 70°C
- MTBF: Approximately 100,000 hours at 25°C
- Certifications: CE, EAC, RoHS
- Management Features: Interface monitoring, VLAN support, SNMP reporting, basic traffic shaping, Access Control Lists
- Included: Gigabit PoE injector, 48V 0.95A power adapter, K-81 fastening set
- Product code
- FTC21
- Switch chip model
- 88E6341
- Number of DC inputs
- 2 (PoE-In, DC jack)
- DC jack input Voltage
- 24-57 V
- Max Power consumption
- 4 W
- Max power consumption without attachments
- 3 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 24-57 V
- Dimensions
- 254 x 97 x 35 mm
- Operating Temperature
- -40°C to +70°C
- Number of 1G Ethernet ports
- 1 (2.5G supported) SFP
2 - Power adapter nominal voltage
- 48 V
