NetBox 5 ax
MikroTik NetBox 5 ax: Versatile Wi-Fi 6 outdoor device with Gigabit Ethernet, RP-SMA connectors, and weatherproof design for AP, CPE, or point-to-point setups.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

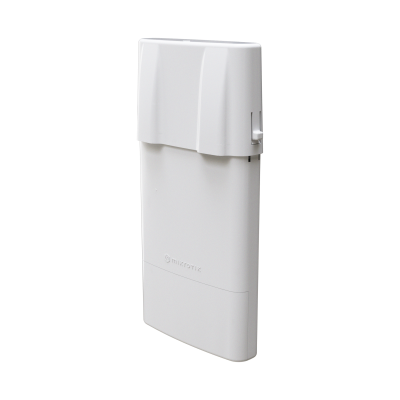

The NetBox 5 ax is a cutting-edge outdoor wireless device featuring Wi-Fi 6 (802.11ax) technology, designed to serve as an Access Point (AP), Customer Premises Equipment (CPE), or a Point-to-Point link. With its powerful dual-chain 5 GHz radio, this device supports advanced connectivity needs for diverse environments. The RP-SMA connectors allow for seamless antenna customization, whether you're setting up an omnidirectional AP with the HGO-antenna-OUT or deploying a long-range point-to-point link using the mANT30 PA antenna for distances up to 30 kilometers.
Housed in a durable, weatherproof enclosure, the NetBox 5 ax is built to withstand challenging outdoor conditions. It's powered by a Qualcomm Maple dual-core ARM CPU, backed by 256 MB RAM, and equipped with a USB port for additional storage or peripherals. Its Gigabit Ethernet port supports PoE-in, making installation simple and flexible.
This device is designed with system administrators in mind, featuring a case that’s easy to open with one hand, concealed Ethernet exits, and convenient mounting options, including a loop for poles or towers and a DIN rail mount. Plus, it retains the classic MikroTik beeper for alarms or creative notifications.
Key Features
- Wi-Fi 6 Technology: 5 GHz dual-chain radio for faster speeds and improved efficiency.
- Versatile Use Cases: Functions as AP, CPE, or Point-to-Point device.
- Customizable Antennas: RP-SMA connectors compatible with various antennas, including HGO-antenna-OUT and mANT30 PA.
- Robust Hardware: Powered by a Qualcomm Maple ARM CPU, 256 MB RAM, and Gigabit Ethernet with PoE-in.
- Outdoor-Ready: Weatherproof design for reliable performance in harsh conditions.
- Convenient Installation: Easy-to-open case, concealed Ethernet exits, and flexible mounting options.
- Additional Features: USB port for storage or peripherals, classic MikroTik beeper for alarms.
Ethernet test results
| L11UG-5HaxD-NB | IPQ-5010 one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.1 | 984.6 | 233.3 | 955.6 | 689.2 | 374.9 |
| Bridging | 25 bridge filter rules | 81.1 | 984.6 | 201.6 | 825.6 | 204.8 | 111.4 |
| Routing | none (fast path) | 81.3 | 987.4 | 219.1 | 897.3 | 398 | 216.5 |
| Routing | 25 simple queues | 81.3 | 987.4 | 178.6 | 731.4 | 181 | 98.5 |
| Routing | 25 ip filter rules | 81.3 | 987.4 | 123.4 | 505.5 | 122.6 | 66.7 |
- Product code
- L11UG-5HaxD-NB
- Architecture
- ARM
- CPU core count
- 2
- CPU nominal frequency
- 800 MHz
- Operating System
- RouterOS v7
- Size of RAM
- 256 MB
- Storage size
- 128 MB
- Storage type
- NAND
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 1 (PoE-IN)
- Max Power consumption
- 15W
- Max power consumption without attachments
- 6W
- Cooling type
- Passive
- PoE in
- Passive PoE
- PoE in input Voltage
- 18-28 V
- 10/100/1000 Ethernet ports
- 1
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- USB Type A
- Max USB current (A)
- 1.5
- Voltage Monitor
- YES
- PCB temperature monitor
- YES
- Wireless 5 GHz number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac/ax
- Wireless 5 GHz chip model
- QCN-6102
- Wi-Fi generation
- Wi-Fi 6
- Wireless 5 GHz Max data rate
- 2400 Mbit/s
- Certification
- CE, FCC, IC, EAC, ROHS
- IP rating
- 54
