LHG 5

The MikroTik LHG 5 is a 5GHz wireless device with a 24.5dBi integrated grid antenna, ideal for point-to-point links and long-range CPE applications.

US$69.00

US$69.00 Tax excluded

block Contact us for back-order
US/Canada
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

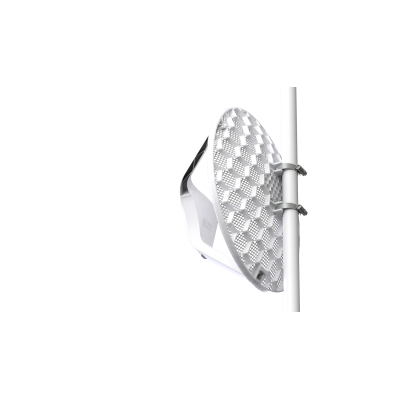

The MikroTik LHG 5 is a compact and lightweight 5GHz 802.11 a/n wireless device designed for high-performance point-to-point links or long-distance CPE applications. Its integrated dual-polarization 24.5dBi grid antenna ensures exceptional signal strength and reliability while minimizing cable loss by incorporating the antenna directly into the wireless unit.

The grid design enhances stability and provides protection against wind, making it suitable for outdoor installations in challenging environments. Supporting the advanced Nv2 TDMA protocol, the LHG 5 ensures efficient and robust network performance.

The LHG 5 is available as a kit (RBLHG5kit) with three units packaged together for convenience.

Available Versions:

  • LHG 5-US: Factory locked for 5170-5250MHz and 5725-5835MHz frequencies (lock cannot be removed).
  • LHG 5 (International): Supports 5150MHz-5875MHz frequency range (subject to country regulations).
MikroTik
RBLHG-5nD
Product code
RBLHG-5nD
Architecture
MIPSBE
CPU core count
1
CPU nominal frequency
600 MHz
Operating System
RouterOS L3
Size of RAM
64MB
Storage size
16MB
Storage type
FLASH
MTBF
Approximately 100'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
Number of DC inputs
1 (PoE-IN)
Max Power consumption
6W
Cooling type
Passive
PoE in input Voltage
11-30 V
Dimensions
Ø 391 x 222 mm; package 450 x 450 x 145 mm
