NetBox 5 ax: Versatile Wi-Fi 6 Outdoor Device for AP, CPE, and Point-to-Point
zoom_out_map
chevron_left chevron_right

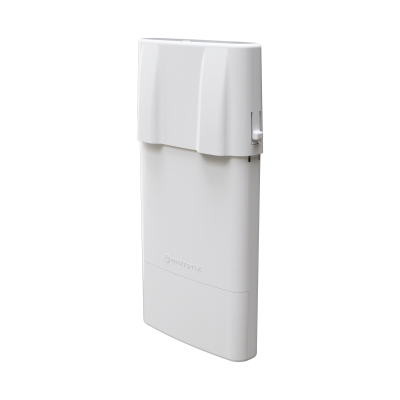

NetBox 5 ax

The NetBox 5 ax is a versatile outdoor device with Wi-Fi 6 capabilities, designed for various roles such as AP, CPE, and Point-to-Point applications. Featuring a modern dual-core ARM CPU, weatherproof enclosure, Gigabit Ethernet, and PoE support, it offers powerful performance and easy installation.

US$109.00 Tax excluded

US$109.00 Tax excluded

Back-Order, Contact us for the ETA
new_releases Product available for back-orders
US/Canada
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

Upgrade to Wi-Fi 6 with the NetBox 5 ax – a robust dual-chain outdoor device that excels as an AP, CPE, or Point-to-Point solution. The 5 GHz Wi-Fi 6 radio, equipped with SMA connectors, supports HGO-antenna-OUT for omnidirectional AP or mANT30 PA antenna for long-range links.

Its Qualcomm Maple CPU, 256 MB RAM, and Gigabit Ethernet with PoE-in ensure superior performance. The weatherproof design, user-friendly case, and additional features like a beeper make it an ideal choice for outdoor setups.

Ethernet test results

L11UG-5HaxD-NB IPQ-5010 one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.1 984.6 233.3 955.6 689.2 374.9
Bridging 25 bridge filter rules 81.1 984.6 201.6 825.6 204.8 111.4
Routing none (fast path) 81.3 987.4 219.1 897.3 398 216.5
Routing 25 simple queues 81.3 987.4 178.6 731.4 181 98.5
Routing 25 ip filter rules 81.3 987.4 123.4 505.5 122.6 66.7
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
MikroTik
L11UG-5HaxD-NB
Product code
L11UG-5HaxD-NB
Architecture
ARM
CPU
IPQ-5010
CPU core count
2
CPU nominal frequency
800 MHz
Operating System
RouterOS v7
Size of RAM
256 MB
Storage size
128 MB
Storage type
NAND
Tested ambient temperature
-40°C to 70°C
Number of DC inputs
1 (PoE-IN)
Max Power consumption
15 W
Max power consumption without attachments
6 W
Cooling type
Passive
PoE in
Passive PoE
PoE in input Voltage
18-28 V
10/100/1000 Ethernet ports
1
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB type A
Max USB current (A)
1.5
Voltage Monitor
Yes
PCB temperature monitor
Yes
Wireless 5 GHz number of chains
2
Wireless 5 GHz standards
802.11a/n/ac/ax
Wireless 5 GHz chip model
QCN-6102
Wi-Fi generation
Wi-Fi 6
Wireless 5 GHz Max data rate
2400 Mbit/s
Certification
CE, FCC, IC, EAC, ROHS
IP
54
