MikroTik NetBox 5 ax Wi-Fi 6 AX2400 Outdoor AP ROS
The MikroTik NetBox 5 ax is a Wi-Fi 6 upgrade of the popular NetBox 5, combining a dual-chain 5 GHz Wi-Fi 6 radio with a weatherproof IP54-rated outdoor enclosure, Gigabit Ethernet, a USB port, and RouterOS v7. Capable of operating as an access point, CPE, or point-to-point link, it is a versatile all-in-one outdoor wireless solution. Powered via Passive PoE and built for a wide temperature range of -40°C to 70°C, it ships as a complete kit with a PoE injector, power adapter, hose clamp, and DIN mount for straightforward deployment.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

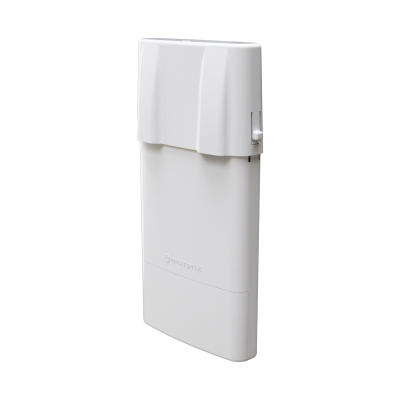

The MikroTik NetBox 5 ax is a ready-to-deploy outdoor wireless device built around the same core hardware as the L11UG-5HaxD RouterBOARD, housed in a robust IP54-rated weatherproof enclosure designed to simplify installation. The enclosure can be opened with a single Torx screwdriver, giving straightforward access to the internal board for servicing or configuration.
The device is powered by a dual-core Qualcomm IPQ-5010 ARM processor running at 800 MHz, with 256 MB of RAM and 128 MB of NAND storage. Its 5 GHz Wi-Fi 6 (802.11a/n/ac/ax) radio, based on the QCN-6102 chip, operates with two chains and delivers up to 2400 Mbit/s, making it suitable for high-throughput access point deployments, CPE installations, and point-to-point wireless links. Note that while longer links may be feasible, their reliability may vary and additional planning may be required.
A single 10/100/1000 Gigabit Ethernet port provides wired connectivity, and a USB Type-A port (with USB Power Reset, up to 1.5 A) adds flexibility for USB modem or peripheral use. PCB temperature monitoring, voltage monitoring, and a built-in beeper for audible alerts and link alignment are included. Cooling is entirely passive, with no fans required.
Power is supplied exclusively via Passive PoE (18–28 V), with a maximum consumption of 15 W (6 W without attachments). The wide tested operating range of -40°C to 70°C makes the NetBox 5 ax suitable for deployment in demanding outdoor environments worldwide.
RouterOS v7 is pre-installed and licensed — no separate purchase is required. The device ships complete with a 24V 1.2A power adapter, Gigabit PoE injector, hose clamp for pole mounting, and a DIN mount (K-27).
Key Specifications at a Glance
- Product Code: L11UG-5HaxD-NB
- Architecture: ARM 32-bit
- CPU: IPQ-5010 dual-core @ 800 MHz
- RAM: 256 MB
- Storage: 128 MB NAND
- Operating System: RouterOS v7
- 5 GHz Wi-Fi: 802.11a/n/ac/ax (Wi-Fi 6), 2-chain, up to 2400 Mbit/s, QCN-6102
- Gigabit Ethernet Ports: 1× 10/100/1000
- USB Port: 1× USB Type-A (USB Power Reset, up to 1.5 A)
- Power Input: Passive PoE 18–28 V
- Max Power Consumption: 15 W (6 W without attachments)
- Cooling: Passive
- IP Rating: IP54
- Tested Ambient Temperature: -40°C to 70°C
- MTBF: Approximately 200,000 hours at 25°C
- PCB Temperature Monitor: Yes
- Voltage Monitor: Yes
- Beeper: Yes
- Certifications: CE, FCC, IC, EAC, RoHS
- Included: 24V 1.2A power adapter, Gigabit PoE injector, hose clamp, DIN mount (K-27)
- Product code
- L11UG-5HaxD-NB
- Architecture
- ARM
- CPU
- IPQ-5010
- CPU core count
- 2
- CPU nominal frequency
- 800 MHz
- Operating System
- RouterOS v7
- Size of RAM
- 256 MB
- Storage size
- 128 MB
- Storage type
- NAND
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 1 (PoE-IN)
- Max Power consumption
- 15 W
- Max power consumption without attachments
- 6 W
- Cooling type
- Passive
- PoE in
- Passive PoE
- PoE in input Voltage
- 18-28 V
- 10/100/1000 Ethernet ports
- 1
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- USB type A
- Max USB current (A)
- 1.5
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
- Wireless 5 GHz number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac/ax
- Wireless 5 GHz chip model
- QCN-6102
- Wi-Fi generation
- Wi-Fi 6
- Wireless 5 GHz Max data rate
- 2400 Mbit/s
- Certification
- CE, FCC, IC, EAC, ROHS
- IP
- 54
