BaseBox 5
MikroTik BaseBox 5: Outdoor 5GHz AP/Backbone/CPE with dual RPSMA connectors, miniPCI-e slot, and Gigabit Ethernet.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

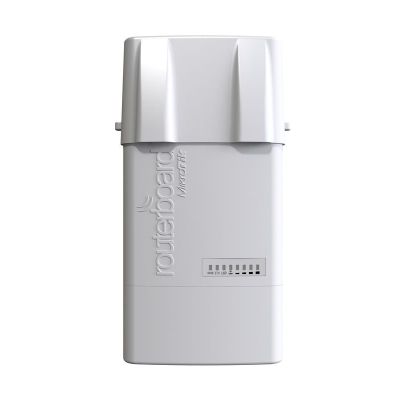

The MikroTik BaseBox 5 is a robust outdoor wireless RouterBOARD designed for 5GHz operations. Housed in a weatherproof enclosure, it features two RPSMA connectors for external antennas and provides options for additional antenna connectors through its miniPCI-e slot, enabling dual-band functionality. This versatility makes it ideal for AP, backbone, or CPE applications.
The enclosure is engineered for ease of use and protection against the elements. It includes a cable hood to shield connections from moisture and accommodates USB, Ethernet, and grounding wire exits behind a protective door.
Key Features:
- 5GHz integrated AP, backbone, or CPE
- Two RPSMA connectors for external antennas
- MiniPCI-e slot for additional wireless interface
- Weatherproof design with easy-to-open case
- Gigabit Ethernet for high-speed connectivity
Box Contents:
RB912 outdoor unit, PoE injector, power supply, mounting loop, DIN rail mount.
Available Versions:
- RB912UAG-5HPnD-OUT-US: Factory locked for 5170-5250MHz and 5725-5835MHz frequencies (lock cannot be removed).
- RB912UAG-5HPnD-OUT (International): Supports 5150MHz-5875MHz range (frequency range may be subject to country regulations).
Wireless specifications
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 30 | -96 |
54MBit/s | 27 | -78 |
MCS0 | 30 | -96 |
MCS7 | 26 | -75 |
Ethernet test results
RB912UAG-5HPnD-OUT | AR9342 1G 1 port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kbps | Mbps | kbps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 81.0 | 983.7 | 232.0 | 950.3 | 269.6 | 138.0 |
Bridging | 25 bridge filter rules | 81.0 | 983.7 | 86.0 | 352.3 | 87.6 | 44.9 |
Routing | none (fast path) | 81.0 | 983.7 | 210.0 | 860.2 | 226.9 | 116.2 |
Routing | 25 simple queues | 81.0 | 983.7 | 103.9 | 425.6 | 106.6 | 54.6 |
Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
- Product code
- RB912UAG-5HPnD-OUT
- Architecture
- MIPSBE
- CPU core count
- 1
- CPU nominal frequency
- 600 MHz
- Operating System
- RouterOS
- Size of RAM
- 64 MB
- Storage size
- 128 MB
- Storage type
- -40°C to 70°C
NAND - Number of DC inputs
- 1 (PoE-IN)
- Max Power consumption
- 12 W
- Max power consumption without attachments
- 14W at 24v
- PoE in
- Passive PoE
- PoE in input Voltage
- 8-30 V
- 10/100/1000 Ethernet ports
- 1
- Dimensions
- 246x135x50mm
- Number of SIM slots
- 1 Modem (Mini SIM)
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- USB type A
- Max USB current (A)
- 1
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
- Wireless 5 GHz number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n
- Wireless 5 GHz chip model
- AR9342
- MiniPCI-e slots
- 1
