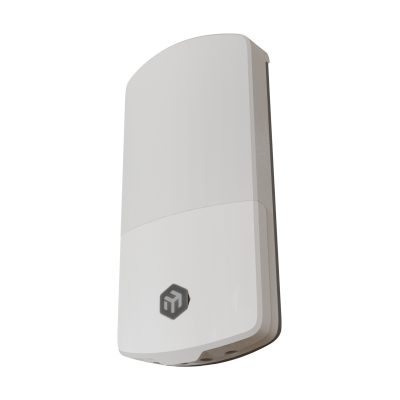

wAP ax LTE7
The wAP ax LTE7 kit is a weatherproof WiFi 6 access point with built-in CAT7 LTE, designed for reliable connectivity in rural and outdoor environments. With dual-band 2x2 MIMO radios, expanded LTE band support including B28 and B32, and a durable IP66 enclosure, it delivers strong wireless coverage and stable internet where wired access is limited.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The wAP ax LTE7 kit is a compact WiFi 6 access point built for demanding outdoor and rural environments. Its proven weatherproof enclosure (IP66 rated) ensures durability, while the stealthy design allows secure and discreet wall or roof installation.
Equipped with a dual-band 2x2 MIMO WiFi 6 radio, it provides strong 2.4 GHz and 5 GHz coverage across homes, yards, farms, or business premises. The integrated CAT7 LTE modem supports carrier aggregation and expanded bands including B28 and B32, delivering improved upload speeds and better performance in congested or remote areas.
Powered by a dual-core ARM CPU and RouterOS v7, the device offers stable routing, advanced firewall features, VPN support, and centralized management with CAPsMAN. Two Gigabit Ethernet ports (PoE-in on one) and a DC jack provide flexible powering and deployment options.
Deployment Solutions:
• Rural homes and cottages
• Farms and remote properties
• Public WiFi at gas stations or bus stops
• Small businesses and outdoor venues
• LTE backup internet
Industries Benefiting:
• Hospitality
• Retail
• Transportation
• Agriculture
• Rural Internet Providers
- Product code
- wAPGR-5HaxD2HaxD&R11e-LTE7
- CPU architecture
- ARM 64bit
- CPU
- Dual-core IPQ-5010 800 MHz
- Operating System
- RouterOS v7, License level 4
- Size of RAM
- 256 MB
- Storage size
- 128 MB NAND
- Number of DC inputs
- 2 (DC-jack, PoE-In)
- DC jack input Voltage
- 12-57 V
- Max Power consumption
- 13 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 18-57 V
- 3G Category
- R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)
- Dimensions
- 229 x 113 x 43 mm
- MiniPCI-e slots
- 1
- LTE Category
- 7 (DL: 300 Mbps; UL: 100 Mbps)
- LTE FDD bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz)
- LTE TDD bands
- 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- TAC
- 35312597
- Operating Temperature
- -30°C to +70°C
- Wireless Standards
- 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain
- Antenna gain
- 6 dBi (2.4 GHz), 7 dBi (5 GHz)
- RAM type
- DDR3L
- Number of 1G Ethernet ports
- 2
- Wireless interface model
- IPQ-5010
- LTE modem
- R11e-LTE7
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 0.8 A
