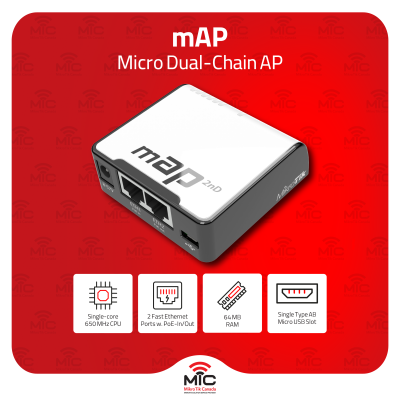

MikroTik mAP 2.4GHz Micro Access Point Dual-Chain PoE Out Wi-Fi 4

The MikroTik mAP (micro Access Point) lives up to its name — it is one of the smallest RouterOS-powered wireless units in the MikroTik range, yet despite its miniature footprint it delivers a complete and fully configurable networking platform. Its combination of compact size, flexible powering, PoE output, and RouterOS makes it a uniquely versatile device for a wide range of deployment scenarios.

Wireless Performance

The mAP uses the QCA9531 chip to deliver dual-chain 2.4GHz 802.11b/g/n (Wi-Fi 4) wireless with a maximum data rate of 300 Mbit/s. The integrated antenna provides 1.2 dBi of gain. Receive sensitivity spans from -96 dBm at 1 Mbit/s to -71 dBm at MCS7, providing reliable connectivity for typical indoor ranges. The dual-chain design improves both throughput and link stability compared to single-chain alternatives.

Processing & Storage

The unit is powered by a QCA9531 processor running at 650 MHz on the MIPSBE architecture, with an integrated QCA9531-BL3A-R switch chip. RAM is 64 MB and storage is 16 MB FLASH. RouterOS is pre-installed and licensed — no additional software purchase is required. The full RouterOS feature set is available including routing, bridging, firewall, QoS, VPN, hotspot, and wireless management, all accessible via WinBox, WebFig, or CLI.

Ethernet & PoE

The mAP has two 10/100 Fast Ethernet ports. Ethernet port 2 supports passive PoE output at up to 0.5 A, allowing a downstream device such as a small camera or sensor to be powered directly from the mAP without a separate PoE injector. This makes the mAP a convenient single-cable solution for installations where both data and power need to be delivered to a connected device.

Flexible Powering

The mAP supports three separate power input methods: an 802.3af/at PoE input via the Ethernet port (12–57 V), a DC jack (8–57 V), and a microUSB port (5 V) — providing exceptional flexibility for installations in vehicles, hotel rooms, or other locations where specific power sources may be available. Maximum power consumption is just 5 W. Passive cooling keeps the unit silent and maintenance-free.

USB Peripheral Support

A microUSB Type AB port is included, supporting USB Power Reset. This can be used for attaching compatible USB peripherals or for powering the device.

Build & Installation

The mAP measures just 68 × 68 × 19 mm, making it one of the most discreet access points in the MikroTik lineup. It is designed for indoor use with a tested ambient temperature range of -20°C to 70°C. MTBF is approximately 100,000 hours at 25°C. On-board PCB temperature and voltage monitors provide health monitoring. The package includes a K-33 mounting kit, a 24V 0.8A power adapter, and a USB OTG cable.

Use Cases

The mAP is ideal for hotel room Wi-Fi deployments, in-vehicle wireless access points, small office or home office setups, IoT gateway installations, and any location where a tiny, low-power, dual-chain 2.4GHz access point with full RouterOS capabilities is needed. Its PoE output makes it particularly useful in scenarios where powering a secondary device from the same unit is desirable.

Key Specifications at a Glance

• Product Code: RBmAP2nD
• Wireless Standard: 802.11b/g/n (Wi-Fi 4), 2.4GHz dual-chain
• Max Wireless Data Rate: 300 Mbit/s
• Antenna Gain: 1.2 dBi (integrated)
• Ethernet Ports: 2x 10/100 Fast Ethernet
• PoE Input: 802.3af/at, 12–57 V (Ethernet); DC jack 8–57 V; microUSB 5 V
• PoE Output: Ether2, passive PoE, up to 0.5 A
• CPU: QCA9531, 650 MHz, MIPSBE architecture
• Switch Chip: QCA9531-BL3A-R
• RAM: 64 MB
• Storage: 16 MB FLASH
• Operating System: RouterOS (pre-installed and licensed)
• USB: 1x microUSB Type AB with Power Reset
• Max Power Consumption: 5 W
• Operating Temperature: -20°C to 70°C
• Dimensions: 68 × 68 × 19 mm
• Cooling: Passive
• MTBF: ~100,000 hours at 25°C
• Certifications: FCC, IC
• Included: K-33 mounting kit, 24V 0.8A power adapter, USB OTG cable
