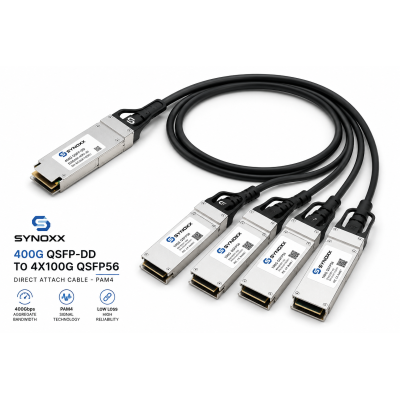

SYNOXX 400G QSFP-DD to 4x100G QSFP56 PAM4 Passive Copper Breakout Cable
The SYNOXX EDQD400-4QPx is a high-speed 400G QSFP-DD to 4x100G QSFP56 breakout DAC cable designed for data centers, high-performance computing, storage networks, switches, routers, and telecom infrastructure. It supports 400Gbps aggregate data rate using PAM4 signaling and is available in short-distance passive copper cable lengths.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The EDQD400-4QPx is a passive copper direct attach cable assembly that converts one 400G QSFP-DD port into four 100G QSFP56 connections. It uses sixteen differential copper pairs and supports up to 56Gbps PAM4 per channel, making it suitable for modern 400G Ethernet networks.
This cable is designed with optimized construction to help reduce insertion loss and crosstalk, while the customized cable braid termination helps limit EMI radiation. It is ideal for short-distance, high-bandwidth connections between switches, servers, routers, and storage systems.
Key Features
- 400G QSFP-DD to 4x100G QSFP56 breakout DAC cable
- Supports aggregate data rates up to 400Gbps PAM4
- Passive copper direct attach cable
- Compatible with IEEE 802.3bj and IEEE 802.3cd
- Low insertion loss and low crosstalk design
- Pull-to-release slide latch
- 30AWG and 28AWG cable options
- Customizable EEPROM mapping
- Single 3.3V power supply
- Operating temperature: 0°C to +70°C
- RoHS compliant
Applications
- Data center networks
- Switches, servers, and routers
- Storage area networks
- High-performance computing
- Telecom and wireless infrastructure
- Test and measurement equipment
- Product code
- EDQD400-4QPx
- Max Power consumption
- 3.3V
- Connector
- 400G QSFP-DD to 4x100G QSFP56
- Data Rate
- 400G (4x100G)
- Distance
- 3M
- Standards
- IEEE 802.3cd, IEEE 802.3bj, QSFP-DD MSA, SFF-8665
- Operating temperature
- 0°C to +70°C
- Cable Type
- Passive Copper DAC
- Max Aggregate Data Rate
- 400Gbps
- Channel Speed
- Up to 56Gbps PAM4 per channel
- Cable Gauge
- PAM4
- Compliance
- RoHS
- Main Connector
- 400G QSFP-DD
- Breakout Connectors
- 4x 100G QSFP56
