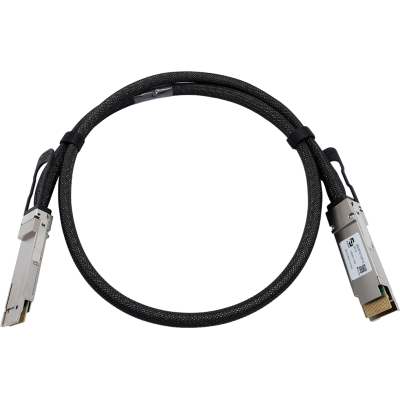

SYNOXX 400G QSFP-DD DAC 1M
High-speed 400G QSFP-DD direct attach copper (DAC) cable, 1m length, supporting PAM4 modulation for short-reach high-density interconnects.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The Synoxx 400G QSFP-DD DAC PAM4 cable is designed for high-speed data transmission over short distances using passive copper interconnect technology. Supporting PAM4 modulation, it delivers aggregate data rates up to 400Gbps across 8 lanes.
This cable is ideal for switch-to-switch and switch-to-server connections within racks or adjacent racks. It features low insertion loss, low crosstalk, and optimized shielding to ensure reliable high-speed performance.
Built with a QSFP-DD interface and compliant with IEEE 802.3cd and InfiniBand HDR standards, this DAC cable provides a cost-effective and power-efficient alternative to optical modules for short-range applications.
The assembly uses high-quality copper conductors and supports I2C management for cable identification. Operating within a temperature range of 0°C to 70°C, it is suitable for data centers, high-performance computing, and enterprise networking environments.
- Product code
- EDQD400-1-PAM4
- Tested ambient temperature
- 0°C to 70°C
- Connector
- QSFP-DD
- Data Rate
- 400G
- Distance
- 1m
