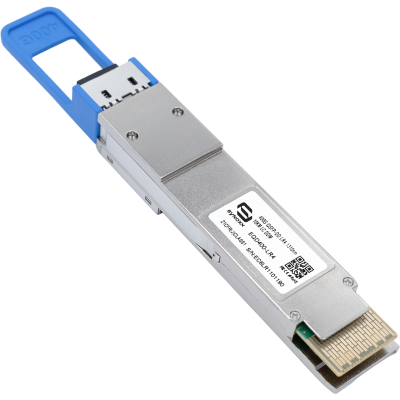

SYNOXX 400G QSFP-DD LR4 1310nm LC 10KM
High-speed 400G QSFP-DD LR4 optical transceiver, up to 10km over single-mode fiber, duplex LC interface, with DDM monitoring.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The Synoxx 400G QSFP-DD LR4 optical transceiver is designed for high-speed data communication over single-mode fiber (SMF). Operating with PAM4 modulation, it delivers 400Gbps data rates over 4 optical lanes.
The module supports transmission distances up to 10km over SMF and uses a duplex LC optical interface. It is compliant with QSFP-DD MSA and IEEE 802.3bs standards, supporting 400GAUI-8 electrical interface.
This hot-pluggable module includes Digital Diagnostic Monitoring (DDM) for real-time tracking of temperature, voltage, bias current, and optical power. With power consumption below 10W, it is ideal for data center, campus, and long-reach 400G Ethernet applications.
- Product code
- EQD400-LR4
- Tested ambient temperature
- 0°C to 70°C
- Connector
- Duplex LC
- Data Rate
- 400G
- Distance
- 10km
- Wavelength
- 1310nm
- Fiber Type
- Singlemode
- DDM
- Yes
