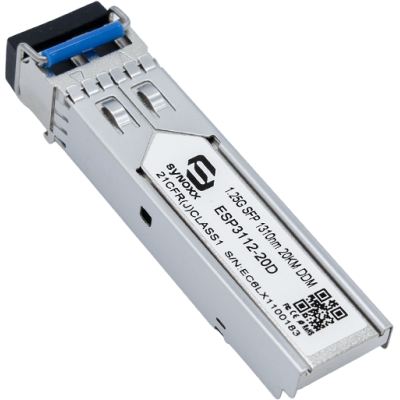

SYNOXX 1.25G SFP LX 1310nm 20KM LC
The Synoxx ESP3112-20D is a high-performance 1.25Gbps SFP optical transceiver designed for transmission up to 20km over single-mode fiber (SMF).
Operating at 1310nm, it uses an FP laser and PIN photodetector to ensure stable and reliable communication. The module is compliant with SFP MSA and SFF-8472 standards and supports Digital Optical Monitoring (DOM) for real-time performance tracking.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The Synoxx ESP3112-20D SFP transceiver is a cost-effective, high-performance module supporting data rates up to 1.25Gbps and transmission distances up to 20km over single-mode fiber (SMF).
It features a 1310nm FP laser transmitter and a PIN photodiode receiver with integrated TIA and MCU control for stable and reliable operation. The module complies with SFP Multi-Source Agreement (MSA) and SFF-8472 standards.
Key features include Digital Diagnostic Monitoring (DDM) for real-time monitoring of temperature, voltage, transmit power, and receive power, ensuring reliable network performance and easier maintenance.
Applications include Gigabit Ethernet, Fiber Channel, switch-to-switch links, and router/server interfaces. Compatible with Cisco, MikroTik, and other major networking brands.
- Product code
- ESP3112-20D
- Tested ambient temperature
- 0 to +70°C
- Connector
- LC
- Data Rate
- 1.25G
- Distance
- 20KM
- Format
- SFP
- Wavelength
- 1310nm
- Fiber Type
- SM
- DDM
- Yes
