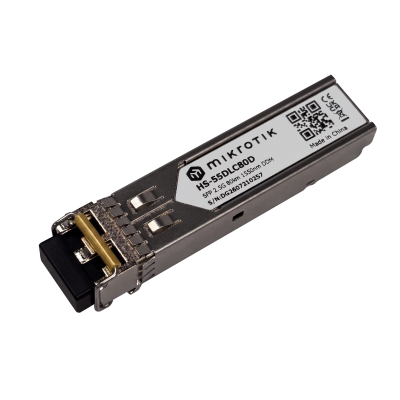

MikroTik HS-55DLC80D 1G/2.5G SFP Single-Mode Transceiver – 1550nm, 80km, Dual LC
The MikroTik HS-55DLC80D is a high-performance 1G / 2.5G SFP optical transceiver designed for long-distance single-mode fiber links up to 80 km. It uses a 1550nm wavelength, Dual LC UPC connector, and supports both 1G and 2.5G data rates, making it a direct upgrade from the previous S-55DLC80D 1.25G module.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik HS-55DLC80D is an SFP transceiver module built for long-distance fiber connectivity over single-mode fiber.
It supports both 1G and 2.5G data rates, providing more flexibility for modern network deployments while maintaining the standard SFP form factor. With a reach of up to 80 km, the module is suitable for long-haul point-to-point links, ISP networks, enterprise backbones, and other high-distance fiber applications.
The HS-55DLC80D operates at a 1550nm wavelength and uses a Dual LC UPC connector. It supports an operating temperature range of -40°C to +70°C and has a maximum power consumption of 1W.
This model is designed as a direct upgrade to the previous S-55DLC80D 1.25G 80 km module, adding 2.5G support while keeping the same SFP setup and long-distance reach.
Key Features
- Supports 1G and 2.5G data rates
- SFP form factor
- Single-mode fiber
- Dual LC UPC connector
- 1550nm wavelength
- Transmission distance up to 80 km
- Operating temperature: -40°C to +70°C
- Maximum power consumption: 1W
- Transmitter output power: -2 to +3 dBm
- Receiver sensitivity: up to -28 dBm
- Direct upgrade from MikroTik S-55DLC80D
- Designed for long-distance fiber links
- Product code
- HS-55DLC80D
- Max Power consumption
- 1W
- Connector
- Dual-LC
- Data Rate
- 1G / 2.5G
- Distance
- 80km
- Format
- SFP
- Mode
- SM
- Wavelength
- 1550nm
