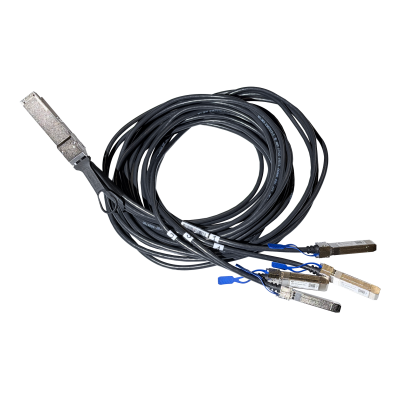

MikroTik DQ+BC0003-DS+ 200G QSFP56 Breakout DAC 3m
The MikroTik DQ+BC0003-DS+ is a 3m passive QSFP56 breakout DAC cable that splits a single 200G port into four independent 50G connections. It replaces the XQ+BC0003-XS+ at the same price while adding 200G to 4×50G support, and retains full backward compatibility with 100G to 4×25G and 40G to 4×10G breakout modes. Purpose-built for MikroTik CRS812 DDQ and CRS804 DDQ 200G and 400G switch deployments.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik DQ+BC0003-DS+ is a passive direct-attach copper (DAC) breakout cable engineered for high-density 200G and 400G data centre deployments. It connects a single QSFP56 host port to four independent SFP56 ports, maximizing port utilization without requiring additional transceivers or hardware.
Supported breakout modes:
- 200G QSFP56 → 4×50G SFP56
- 100G QSFP56 → 4×25G SFP28
- 40G QSFP56 → 4×10G SFP+
The DQ+BC0003-DS+ is a direct upgrade from the XQ+BC0003-XS+, offering the same 3m cable length and same price point while adding full 200G capability. At 3 meters it reaches comfortably across standard rack deployments while keeping cabling clean and manageable.
Specifications:
- Product code: DQ+BC0003-DS+
- Cable type: Passive DAC (Direct Attach Copper)
- Connector A: QSFP56 (200G)
- Connector B: 4× SFP56 (50G)
- Cable length: 3m
- MTBF: ~100,000 hours at 25°C
Compatible with: MikroTik CRS812 DDQ, CRS804 DDQ, and other QSFP56 platforms supporting breakout mode.
Ideal for: data centre spine-leaf interconnects, 200G/400G port splitting, high-density server and storage connectivity, and next-generation switch deployments.
- Product code
- DQ+BC0003-DS+
- Connector
- QSFP56 breakout cable
- Primary split
- 200G to 4x50G
- Additional splits
- 100G to 4x25G, 40G to 4x10G
