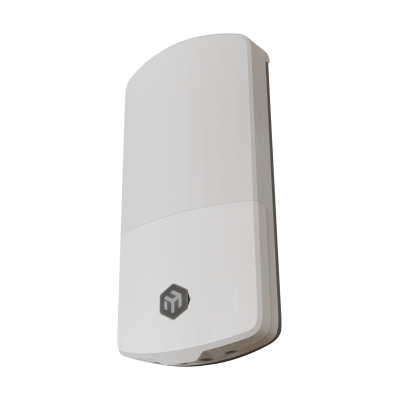

The MikroTik wAP ax LTE4 North America Kit is a professionally modified version of the wAP ax LTE7 Kit, designed to provide broader LTE band compatibility for deployments across Canada, the United States, and Mexico.

The original LTE Cat7 Mini PCIe modem is replaced with a Quectel EG25-GL LTE Cat4 Mini PCIe modem. This provides support for key North American LTE bands, including Bands 2, 4, 5, 12, 13, 25, 26, 28, and 66.

The device combines LTE connectivity with dual-band Wi-Fi 6, two Gigabit Ethernet ports, PoE input, RouterOS v7, CAPsMAN support, and a durable IP66 weatherproof enclosure. It is suitable for vehicles, rural properties, remote offices, temporary sites, retail locations, public Wi-Fi, surveillance systems, IoT deployments, and LTE internet backup.

Each unit is professionally assembled, configured, inspected, and tested by HR Wireless Netware Technology Ltd.

Important compatibility notice

This configuration provides broader North American LTE band coverage than the standard wAP ax LTE7 Kit. Actual carrier operation depends on the carrier, SIM plan, available bands, APN configuration, network policies, signal conditions, and device certification requirements.

Customers should confirm carrier acceptance before deployment, particularly for managed, enterprise, FirstNet, private APN, or carrier-certified applications.

Key features

• Customized for North American LTE deployments
• Quectel EG25-GL LTE Cat4 Mini PCIe modem
• Up to 150 Mbps LTE download
• Up to 50 Mbps LTE upload
• LTE 2×2 MIMO
• LTE FDD Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 25, 26, 28, and 66
• LTE TDD Bands 34, 38, 39, 40, and 41
• WCDMA Bands 1, 2, 4, 5, 6, 8, and 19
• GSM Bands 2, 3, 5, and 8
• Dual-band Wi-Fi 6
• Up to 574 Mbps at 2.4 GHz
• Up to 1200 Mbps at 5 GHz
• 2×2 MIMO wireless
• Two Gigabit Ethernet ports
• PoE input and DC power input
• RouterOS v7 with License Level 4
• CAPsMAN centralized wireless management
• IP66 weatherproof enclosure
• Passive cooling
• Wall or pole mounting
• Concealed cable entry
• Professionally assembled and tested in Canada

Technical specifications

Cellular modem

• Modem: Quectel EG25-GL Mini PCIe
• LTE category: LTE Cat4
• Maximum LTE-FDD download: 150 Mbps
• Maximum LTE-FDD upload: 50 Mbps
• Maximum LTE-TDD download: 130 Mbps
• Maximum LTE-TDD upload: 30 Mbps
• LTE MIMO: 2×2
• SIM format: Micro SIM
• Cellular interface: Mini PCIe

LTE bands

LTE FDD

B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66

LTE TDD

B34, B38, B39, B40, B41

Wireless

• Wireless standard: Wi-Fi 6
• 2.4 GHz: 802.11b/g/n/ax
• 5 GHz: 802.11a/n/ac/ax
• Wireless chains: 2×2 MIMO
• Maximum 2.4 GHz data rate: 574 Mbps
• Maximum 5 GHz data rate: 1200 Mbps
• Combined theoretical wireless rate: 1774 Mbps
• CAPsMAN support: Yes

Hardware

• Processor: Dual-core 64-bit ARM IPQ-5010
• Processor frequency: 800 MHz
• Memory: 256 MB RAM
• Storage: 128 MB NAND
• Ethernet: 2× Gigabit Ethernet
• PoE input: 802.3af/at
• Input voltage: 18–57 V through PoE or 12–57 V through DC input
• Cooling: Passive
• Operating system: RouterOS v7
• RouterOS licence: Level 4

Enclosure

• Outdoor rating: IP66
• Mounting: Wall or pole
• Cable entry: Concealed pass-through
• Security: Vandal-resistant anti-tamper enclosure
• Operating temperature: -30°C to +65°C

Ideal applications

• LTE internet across Canada, the United States, and Mexico
• Mobile and cross-border operations
• Buses, coaches and commercial vehicles
• Rural homes and cottages
• Construction and temporary work sites
• Remote offices
• Security camera connectivity
• IoT and telemetry systems
• Retail and point-of-sale backup
• Gas stations
• Public Wi-Fi hotspots
• LTE failover for wired internet
• Private APN deployments

Package contents

• MikroTik wAP ax outdoor router
• Quectel EG25-GL LTE Cat4 Mini PCIe modem installed
• 24 V power adapter
• Gigabit PoE injector
• Pole-mounting hose clamp
• Wireless Netware assembly and inspection
• Basic modem and RouterOS configuration
