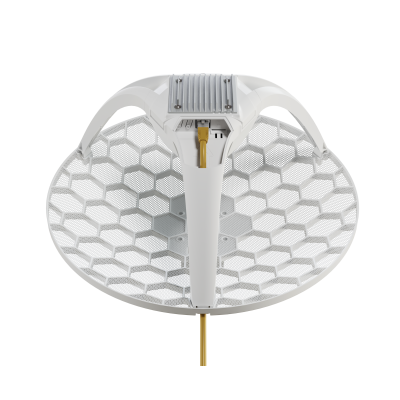

MikroTik LHGG LTE7 Outdoor LTE Cat7 17dBi Grid Kit
The MikroTik LHGG LTE7 Kit (LHGGR&R11e-LTE7) is a rugged outdoor LTE Cat7 router with a built-in 17 dBi directional grid antenna for last-mile internet in remote and rural locations. It delivers up to 300 Mbps downlink and 100 Mbps uplink — double the upload speed of the LTE6 predecessor — with expanded band support including B28 and B32. IP54 rated, pole or mast mountable, and operating from -40°C to +70°C, it ships with RouterOS v7 preinstalled.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik LHGG LTE7 Kit (LHGGR&R11e-LTE7) is a complete outdoor LTE solution for reliable last-mile internet in areas where wired infrastructure is unavailable. The integrated 17 dBi high-gain directional grid antenna and LTE Cat7 modem deliver a strong, stable signal even where mobile phones cannot connect.
Key features:
- LTE Cat7 — 300 Mbps downlink, 100 Mbps uplink with 2×2 MIMO DL
- LTE FDD bands: B1, B3, B5, B7, B8, B20, B28 (700 MHz)
- LTE TDD bands: B38, B40, B41
- 3G R8 fallback — 42.2 Mbps downlink, 5.76 Mbps uplink
- 17 dBi grid antenna — lightweight, wind-resistant, high-gain
- 1× Gigabit Ethernet with PoE-In (802.3af/at, 12–57V), max 8W
- Dual-core ARM 64-bit CPU at 800 MHz, 256 MB RAM, 16 MB Flash
- Passive cooling with large heat sink for continuous load stability
- IP54 rated, -40°C to +70°C, MTBF ~200,000 hours at 25°C
- RouterOS v7, License Level 3 — free updates for life (minimum 5 years)
- Pole/mast mountable — hose clamps ×2 and K-LHG screw kit included
- Certified CE, EAC, RoHS
In the box: 24V 0.8A power adapter, Gigabit PoE injector, hose clamp ×2, K-LHG screw kit.
Ideal for: rural last-mile internet, video surveillance uplinks, VPN endpoints, remote work, and multi-user off-grid deployments.
- Product code
- LHGGR&R11e-LTE7
- CPU architecture
- ARM 64bit
- CPU
- Dual-core 88F3720 800 MHz
- Operating System
- RouterOS v7, License level 3
- Size of RAM
- 256 MB
- Storage size
- 16 MB Flash
- Max Power consumption
- 8 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 12-57 V
- 3G Category
- R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)
- Dimensions
- 391 x 391 x 227 mm
- MiniPCI-e slots
- 1
- LTE Category
- 7 (DL: 300 Mbps; UL: 100 Mbps)
- LTE FDD bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz)
- LTE TDD bands
- 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- TAC
- 35312597
- Operating Temperature
- -40°C to +70°C
- RAM type
- DDR3L
- Number of 1G Ethernet ports
- 1
- LTE modem
- R11e-LTE7
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 0.8 A
- DC input
- PoE-In
