LHGG LTE7 kit

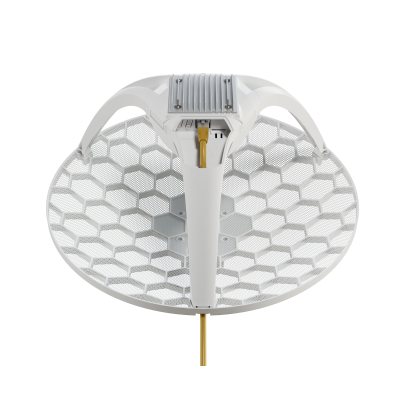

The MikroTik LHGG LTE7 kit is a high-gain outdoor LTE router designed for reliable last-mile internet in remote areas. Featuring a CAT7 LTE modem with up to 100 Mbps upload speed, expanded band support including B28 and B32, and a 17 dBi directional grid antenna, it delivers strong and stable connectivity even where phones have no signal. With Gigabit Ethernet, PoE-in support, and a rugged design built for harsh weather, it is ideal for rural and long-distance deployments.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The LHGG LTE7 kit is built for long-distance LTE connectivity in rural and remote locations. Designed as a powerful “last mile” solution, it can be mounted on poles or masts to capture stronger LTE signals where standard devices fail.
Equipped with a CAT7 LTE modem supporting carrier aggregation, it offers up to 300 Mbps download and 100 Mbps upload speeds. The expanded LTE band support, including Band 28 (700 MHz) and Band 32 (1500 MHz), improves performance in congested and countryside environments.
The integrated 17 dBi high-gain directional grid antenna ensures strong signal reception while reducing wind load, making it perfect for harsh and windy weather. Its durable enclosure and operating temperature range from -40°C to +70°C guarantee stable performance in extreme climates. A large heat sink keeps the system reliable under continuous load.
Powered by a dual-core ARM CPU and running RouterOS v7, the LHGG LTE7 kit provides advanced routing, firewall features, VPN support, and flexible network configuration. It includes one Gigabit Ethernet port with 802.3af/at PoE-in for simple deployment.
Deployment Solutions:
• Rural homes and farms
• Remote offices and cabins
• Video surveillance uplinks
• LTE backup for businesses
• WISP last-mile installations
Industries Benefiting:
• Rural Internet Providers
• Agriculture
• Security and Surveillance
• Construction Sites
• Remote Infrastructure
- Product code
- LHGGR&R11e-LTE7
- CPU architecture
- ARM 64bit
- CPU
- Dual-core 88F3720 800 MHz
- Operating System
- RouterOS v7, License level 3
- Size of RAM
- 256 MB
- Storage size
- 16 MB Flash
- Max Power consumption
- 8 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 12-57 V
- 3G Category
- R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)
- Dimensions
- 391 x 391 x 227 mm
- MiniPCI-e slots
- 1
- LTE Category
- 7 (DL: 300 Mbps; UL: 100 Mbps)
- LTE FDD bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz)
- LTE TDD bands
- 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- TAC
- 35312597
- Operating Temperature
- -40°C to +70°C
- RAM type
- DDR3L
- Number of 1G Ethernet ports
- 1
- LTE modem
- R11e-LTE7
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 0.8 A
- DC input
- PoE-In
