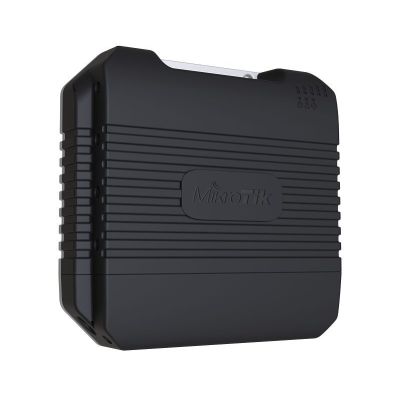

LtAP LTE7 kit
LtAP LTE7 kit is a rugged LTE Cat7 automotive router with built-in GPS, Wi-Fi, roaming SIM support, and flexible power options. It’s designed for vehicles, fleets, logistics, and mobile connectivity in harsh environments.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The LtAP LTE7 kit is the upgraded, rugged LTE access point made for vehicles, fleets, and mobile networks. It keeps everything you loved from the original LtAP — the tough weatherproof housing, built-in GPS, MiniSIM slots, flexible power options, and expandability — and adds a faster LTE Category 7 modem with expanded frequency support, including Band 32 for better performance in crowded or rural areas.
This unit is built for nonstop mobility. With 3 MiniSIM slots for roaming, internal LTE antennas, optional external antenna connectors, and a strong automotive-grade enclosure, it’s perfect for transport fleets, delivery trucks, buses, forklifts, agricultural machines, public transit, and mobile video/security systems.
Powered by RouterOS v7, it gives you full control over routing, VPNs, GPS tracking, firewalling, automation scripts, and advanced policies — without subscriptions or paywalls. Easy to power in any scenario: DC jack, passive PoE-In, and automotive input. You can even expand the system with a second LTE modem or a 5 GHz radio using the dual miniPCIe slots.
Key Features
-
Rugged automotive-grade LTE router with GPS
-
Upgraded LTE Category 7 modem for faster and more stable connectivity
-
Expanded frequency support including Band 32
-
Built-in GPS for fleet tracking and location services
-
3 MiniSIM slots for seamless roaming
-
Dual miniPCIe slots for additional LTE or Wi-Fi modules
-
Flexible power options: DC jack, passive PoE-In, and automotive input
-
2.4 GHz dual-chain Wi-Fi
-
Weatherproof housing built for vehicles and harsh conditions
-
Powered by RouterOS v7 with full networking and automation features
Deployment Uses
-
Fleet tracking and logistics (GPS + LTE)
-
Public transportation routing and monitoring
-
Delivery trucks, taxis, buses, forklifts, and agricultural vehicles
-
Mobile video surveillance systems
-
Rural LTE installations with roaming
-
Secure automotive networks with VPN
-
IoT and mobile gateways for moving assets
- Product code
- LtAP-2HnD&R11e-LTE7
- CPU architecture
- MMIPS
- CPU
- MT7621AT 880 MHz
- Operating System
- RouterOS v7, License level 4
- Size of RAM
- 128 MB
- Storage size
- 16 MB Flash
- Number of DC inputs
- 3 (DC-jack, PoE-In, Automotive)
- DC jack input Voltage
- 12-30 V
- Max Power consumption
- 24 W
- 3G Category
- R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)
- GNSS standards
- GPS
- Wireless AP
- 2.4 GHz 802.11b/g/n dual-chain
- Dimensions
- 170 x 162 x 40 mm
- USB slot type
- USB 2.0 Type A
- MiniPCI-e slots
- 2
- Automotive input Voltage
- 12-27 V, for 24V systems adding the APA-1 device is recommended to filter out the voltage spikes coming from the alternator.
- LTE Category
- 7 (DL: 300 Mbps; UL: 100 Mbps)
- LTE FDD bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz)
- LTE TDD bands
- 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- TAC
- 35312597
- Operating Temperature
- -40°C to +70°C
- Antenna gain
- 2.5 dBi
- RAM type
- DDR3
- Number of 1G Ethernet ports
- 1
- Wireless interface model
- AR9382
- LTE modem
- R11e-LTE7
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 1.2 A
- PoE-In
- Passive PoE
- PoE-In input Voltage
- 12-30 V
- Max power consumption (without attachments)
- 12 W
