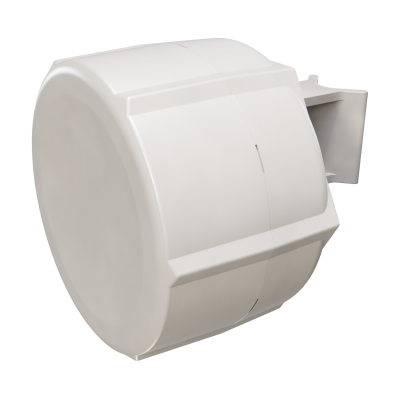

SXT LTE7
The SXT LTE7 kit is a rugged LTE solution built for remote areas. With the advanced R11e-LTE7 modem, high-gain antenna, PoE support, and wide power input range, it ensures stable, fast Internet where phones fail.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The SXT LTE7 kit is a powerful outdoor LTE solution engineered for remote and off-grid applications. Equipped with the R11e-LTE7 modem, this device delivers fast upload speeds, better frequency coverage (including Band 32), and improved reliability — all in the same trusted SXT enclosure.
Key Features:
-
CAT7 LTE Modem: Higher upload speed, lower latency, and expanded band support (now includes Band 32 for better urban performance).
-
Power-over-Ethernet: PoE-in and PoE-out support (802.3af/at and passive PoE) with 12–57 V wide input range.
-
Rugged Outdoor Design: Reliable in harsh weather; stays hidden in plain sight.
-
Energy Efficient: Max power consumption just 24W.
-
Dual 100 Mbps Ethernet Ports: Seamless integration for data and power distribution.
Deployment Solutions:
-
Remote Farms and Cabins – Delivers reliable connectivity where mobile coverage is weak or unavailable.
-
Off-grid Installations – Ideal for solar- or battery-powered deployments with low energy needs.
-
Emergency Response Units – Reliable backup Internet for field operations in disaster-prone or underserved regions.
Industries Benefiting:
-
Agriculture and smart farming
-
Emergency communications and public safety
-
Rural connectivity providers
- Product code
- SXTR&R11e-LTE7
- CPU architecture
- MIPSBE
- CPU
- QCA9531 650 MHz
- Switch chip model
- QCA9531
- Operating System
- RouterOS v7, License level 3
- Size of RAM
- 64 MB
- Storage size
- 16 MB Flash
- Max Power consumption
- 24 W
- Max power consumption without attachments
- 7 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 12-57 V
- PoE out
- Passive PoE up to 57V (Ether2)
- 3G Category
- R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)
- Dimensions
- 140 x 140 x 56 mm
- MiniPCI-e slots
- 1
- LTE Category
- 7 (DL: 300 Mbps; UL: 100 Mbps)
- LTE FDD bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz)
- LTE TDD bands
- 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- TAC
- 35312597
- Operating Temperature
- -40°C to +60°C
- RAM type
- DDR2
- LTE modem
- R11e-LTE7
- Number of 100M Ethernet ports
- 2
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 1.2 A
- DC input
- PoE-In
