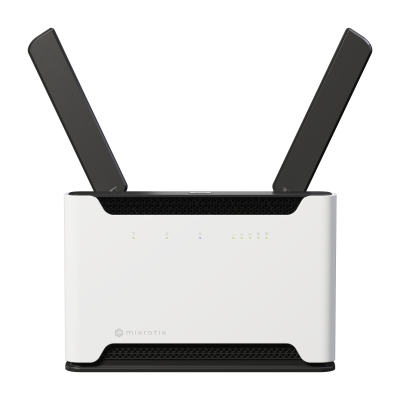

MikroTik Chateau 5G R17 ax eSIM Wi-Fi 6 Router

The MikroTik Chateau 5G R17 ax is the smartest and most capable evolution of MikroTik's iconic Chateau 5G home router series. Combining the latest 5G Release 17 modem technology, a true built-in eSIM, powerful Wi-Fi 6, and the full feature set of RouterOS v7, it is designed for users who demand cutting-edge 5G performance with professional-grade network control — in an elegantly designed desktop enclosure.

5G Release 17 Modem — The Latest Standard

At the heart of the Chateau 5G R17 ax is the RG650E 5G Release 17 modem, representing the latest generation of mobile connectivity. It supports LTE Category 20 with download speeds of up to 2.0 Gbps and 211 Mbps uplink, along with 5G NSA and 5G SA modes across a comprehensive range of FDD and TDD bands. 4×4 MIMO on the downlink (and 2×2 MIMO in 5G SA uplink) maximises signal reception and throughput, while support for carrier aggregation and the expanded band coverage of Release 17 ensures compatibility with the widest range of current and emerging mobile network deployments worldwide. Four dedicated internal LTE/5G antennas provide excellent signal pickup, including in areas with weaker coverage.

True eSIM + Physical Micro SIM

The Chateau 5G R17 ax features a genuine embedded SIM (eSIM) built directly into the hardware — allowing the device to get online instantly without needing a physical SIM card. The eSIM is fully compatible with MikroTik Connectivity (MikroTik's own service for quick provisioning) as well as any third-party eSIM-compatible mobile operator, with support for multiple eSIM profiles that can be switched without opening the device. A Micro SIM slot is also available for users who prefer a traditional physical SIM, giving maximum flexibility in how the device is provisioned and managed. This makes the Chateau 5G R17 ax particularly well-suited for remote deployments, mobile operator device management programs, and situations where out-of-box connectivity is essential.

Dual-Band Wi-Fi 6 with 4×4 MIMO

The Chateau 5G R17 ax delivers dual-band Wi-Fi 6 (802.11ax) across both 2.4 GHz and 5 GHz, with 4×4 MIMO and two external dual-chain Wi-Fi antennas providing strong coverage suited to homes of all sizes, including multi-floor setups. The 2.4 GHz band (QCN-5022) achieves up to 574 Mbit/s, while the 5 GHz band (QCN-5052) delivers up to 1,200 Mbit/s — providing reliable, high-throughput wireless connectivity for all connected devices.

Powerful ARM64 Processing

The Qualcomm IPQ-6010 quad-core ARM 64-bit processor operating between 864–1800 MHz, combined with 1 GB of RAM and 128 MB of NAND storage, provides ample processing power for running the full RouterOS v7 feature set including VPNs, firewalling, traffic shaping, VLAN segmentation, and container support.

Wired Connectivity

Five wired Ethernet ports cover a broad range of use cases: four standard Gigabit Ethernet ports handle typical client connections, while a single 2.5 Gigabit Ethernet port provides a faster link for a NAS, a high-performance workstation, or a secondary router. A USB-A port (up to 1.5A, with USB power reset) allows connection of USB storage devices for local file sharing, logging, or other RouterOS-compatible applications.

RouterOS v7 — Full Professional Control

Running RouterOS v7, pre-installed and fully licensed with no subscription required, the Chateau 5G R17 ax puts professional-grade network management in the hands of every user. VPN configuration, bandwidth limiting, site blocking, VLAN creation, SMS alerts, TR-069 remote management for operators, and advanced scripting are all available from day one. IPsec VPN throughput on a single tunnel reaches approximately 878 Mbps, making it a capable platform for secure remote working environments. Passive cooling ensures silent operation across a tested ambient temperature range of -40°C to 70°C.

Ideal Use Cases

The Chateau 5G R17 ax is a perfect fit for remote workers who need fast, reliable, and secure 5G internet; mobile operators looking for a modern, TR-069-manageable customer premises device; households wanting to replace slow DSL or poorly performing Wi-Fi extenders with a serious 5G gateway; and anyone who wants to get online immediately with eSIM without waiting for a physical SIM to arrive.

Key Specifications at a Glance:

• Product Code: S53UG+5HaxD2HaxD-TC&RG650E-EU
• CPU: Qualcomm IPQ-6010, ARM 64-bit, quad-core, 864–1800 MHz
• RAM: 1 GB | Storage: 128 MB NAND
• 5G Modem: Release 17, LTE Cat20 (2.0 Gbps DL / 211 Mbps UL), 4×4 MIMO DL, NSA + SA
• SIM: Built-in eSIM + 1× Micro SIM slot
• Wi-Fi 6: Dual-band 4×4 MIMO — 2.4 GHz (574 Mbit/s) + 5 GHz (1,200 Mbit/s)
• Ethernet: 4× Gigabit + 1× 2.5 Gigabit
• USB: 1× USB-A (1.5A, power reset)
• Power: DC jack (12–28V), max 27W, passive cooling
• Operating Temp: -40°C to 70°C | MTBF: ~200,000 hours at 25°C
• Certifications: CE, EAC, RoHS
• OS: RouterOS v7 (pre-installed & licensed)
