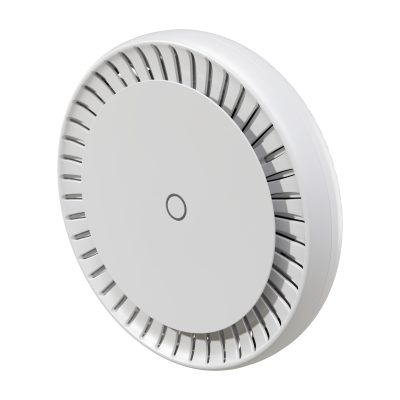

cAP LTE12 ax

The cAP LTE12 ax is a ceiling-mounted access point combining Wi-Fi 6 and a CAT12 LTE modem, ideal for high-traffic outdoor businesses like cafes, festivals, and pop-up stores. It ensures reliable connectivity, advanced RouterOS features, and seamless roaming.

US$229.00

US$229.00 Tax excluded

block Contact us for back-order
US/Canada
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

The cAP LTE12 ax is a robust Wi-Fi 6 ceiling-mounted access point with an integrated CAT12 LTE modem, designed for busy, high-traffic environments. It offers advanced connectivity and unparalleled reliability with 40% faster 5 GHz and 90% faster 2.4 GHz speeds compared to previous generations. The ceiling-mount design optimizes signal distribution and minimizes risks like theft or interference.

Key Features:

  • Wi-Fi 6 and CAT12 LTE Modem: Speeds up to 600 Mbps, advanced encryption, and seamless roaming.
  • Quad-Core CPU & RouterOS: Advanced routing, VPN, IPsec, and CAPsMAN central management.
  • PoE-in and PoE-out: Simplifies powering other devices like cameras or additional APs.

Deployment Solutions:

  1. Outdoor Retail Spaces: Provide seamless internet to customers in open-air cafes, pop-up stores, and festivals.
  2. Event Connectivity: Ensure reliable internet for vendors and visitors in crowded event areas.
  3. Hospitality Businesses: Enhance customer satisfaction with stable and secure wireless networks.

Industries Benefiting:

  • Hospitality and Retail
  • Event Management
  • Public Outdoor Services
  • Small and Medium Businesses

Ethernet test results

cAPGi-5HaxD2HaxD&EG12-EA IPQ-6010 2-port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 162.5 1974 469.9 1924.8 1470.1 799.7
Bridging 25 bridge filter rules 162.5 1974 380.1 1556.9 386.5 210.2
Routing none (fast path) 162.5 1974 469.9 1924.8 1281.6 697.2
Routing 25 simple queues 162.5 1973.1 391 1601.7 395.2 215
Routing 25 ip filter rules 162.5 1973.1 266.7 1092.5 268.7 146.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

cAPGi-5HaxD2HaxD&EG12-EA IPQ-6010 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 78.4 878.1 91.9 376.4 93.6 47.9
256 tunnels AES-128-CBC + SHA1 50.1 561.1 55.5 227.3 58.6 30
256 tunnels AES-128-CBC + SHA256 50 560 55.4 226.9 58.6 30
256 tunnels AES-256-CBC + SHA1 49.4 553.3 54.8 224.5 58.6 30
256 tunnels AES-256-CBC + SHA256 49.4 553.3 55 225.3 58.6 30
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

MikroTik
cAPGi-5HaxD2HaxD&EG12-EA
New
Product code
cAPGi-5HaxD2HaxD&EG12-EA
Architecture
ARM 64bit
CPU
IPQ-6010
CPU core count
4
CPU nominal frequency
auto (864 - 1800) MHz
Switch chip model
IPQ-6010
RouterOS License
4
Operating System
RouterOS v7
Size of RAM
1 GB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 50°C
IPsec hardware acceleration
Yes
Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
18-57 V
Max Power consumption
34 W
Max power consumption without attachments
13 W
Cooling type
Passive
PoE in
802.3af/at
PoE in input Voltage
18-57 V
PoE out ports
Ether2
PoE out
Passive PoE up to 57V
Max out per port output - input (less than 30 V)
0.6 A
Max out per port output (input more than 30 V)
0.4 A
Max total out (A)
0.6 A
Total output current
0.6
Total output power
22.8
3G Category
R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
10/100/1000 Ethernet ports
2
Number of SIM slots
1 Modem (Micro SIM)
CPU temperature monitor
Yes
Wireless 2.4 GHz Max data rate
574 Mbit/s
Wireless 2.4 GHz number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz
6
Wireless 2.4 GHz chip model
QCN-5022
Wireless 5 GHz number of chains
2
Wireless 5 GHz standards
802.11a/n/ac/ax
Antenna gain dBi for 5 GHz
5.5
Wireless 5 GHz chip model
QCN-5022
LTE Category
12 (600Mbps Downlink, 150Mbps Uplink)
LTE FDD bands
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands
38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
MIMO DL
4x4
MIMO UL
1x1
TAC
86056104
Wireless 5 GHz Max data rate
1200 Mbit/s
Wireless 2.4 GHz generation
Wi-Fi 6
Wireless 5 GHz generation
Wi-Fi 6
Certification
CE, EAC, ROHS
Mode button
Yes
IP rating
20
Number of 1G Ethernet ports with PoE-out
1
