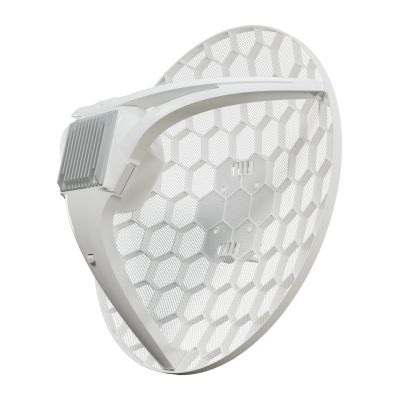

LHGG LTE6 kit
LHGG LTE6 KIT – a great solution for great distances. With Gigabit Ethernet, an upgraded dual-core CPU, a powerful 17 dBi antenna, and a massive heat sink, you can trust the LHGG LTE6 kit to handle any challenge!
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
Do you want high-speed Internet in the middle of nowhere? Then you want our newest LHGG LTE6 kit! It is a device for “last mile” Internet access in very remote locations. Mount it outdoors, on a pole, mast, or any tall structure, and connect even where cell phones fail. Due to its large high-gain 17 dBi antenna, the LHGG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The LHGG LTE6 kit features a 300 Mbps CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.
This device features a Gigabit Ethernet port with PoE-in for powering the device from the Ethernet port. The grid antenna design can withstand harsh, windy weather and can be mounted in different ways. There is a massive heat sink, so you don’t have to worry about overheating. With this device, you can really focus on the important stuff while the tech simply works in the background.
Ethernet test results
| RBLHGGR&R11e-LTE6 | 88F3720 1G one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.3 | 987.3 | 235.0 | 962.6 | 789.9 | 404.4 |
| Bridging | 25 bridge filter rules | 81.3 | 987.3 | 221.3 | 906.4 | 678.3 | 347.3 |
| Routing | none (fast path) | 81.3 | 987.3 | 235.0 | 962.6 | 790.4 | 404.7 |
| Routing | 25 simple queues | 81.3 | 987.3 | 235.0 | 962.6 | 450.0 | 230.4 |
| Routing | 25 ip filter rules | 81.3 | 987.3 | 219.8 | 900.3 | 219.5 | 112.4 |
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
- 10/100/1000 Ethernet ports
- 1
- Product code
- RBLHGGR&R11e-LTE6
- CPU
- 88F3720
- CPU core count
- 2
- CPU nominal frequency
- 1200 MHz
- Dimensions
- 391 x 391 x 237 mm
- License level
- 3
- Operating System
- RouterOS
- Size of RAM
- 256 MB
- Storage size
- 16 MB
- Storage type
- FLASH
- Tested ambient temperature
- -30°C to 70°C
- Max Power consumption
- 8 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 12-57 V
- Number of DC inputs
- 1 (PoE-IN)
- Number of SIM slots
- 1 Modem (Mini SIM)
- MiniPCI-e slots
- 1
- 2G Category
- Class12
- 3G Category
- R7 (21 Mbps downlinks, 5.76 Mbps uplink) R8 (42.2 Mbps downlink, 5.76 Mbps uplink)
- LTE Category
- 6 (300 Mbps downlink, 50 Mbps uplink)
- LTE FDD bands
- 1(2100)/2(1900)/3(1800)/5(850)/7(2600)/8(900)/12(700)/17(700)/20(800)/25(1900)/26(850)
- LTE TDD bands
- 38(2600)/39(1900)/40(2300)/41n(2500)
- Antenna gain
- 17 dBi
- Antenna beam width
- 25
- Certification
- CE/RED, EAC, ROHS
- 2G bands
- 2(1900)/3(1800)/5(850)/8(900)
- 3G bands
- 1(2100)/2(1900)/5(850)/8(900)
