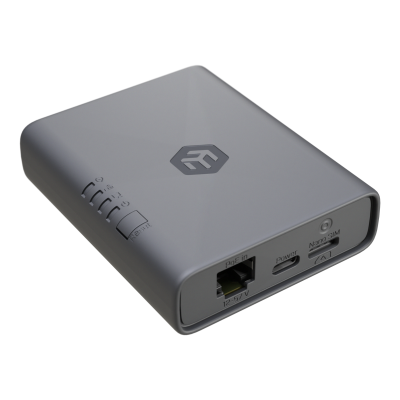

KNOT Embedded LTE4 Global
The MikroTik KNOT Embedded LTE4 Global is a compact industrial LTE Cat4 gateway with Bluetooth, GNSS, and GPIO support. Designed for automation, IoT, and smart city deployments, it fits in tight spaces and mounts on a DIN rail. With eSIM and Nano SIM support, Gigabit Ethernet, and PoE-in, it delivers flexible and reliable LTE connectivity across North America and other global markets. PTCRB and AT&T certified for dependable deployment.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The KNOT Embedded LTE4 Global is a compact industrial LTE gateway built for integrators, automation specialists, and IoT system builders. Designed to fit into small spaces and mount directly on a DIN rail, it delivers reliable LTE Cat4 connectivity with Bluetooth and GNSS support.
Powered by RouterOS v7, it provides a full networking stack including firewall, VPN, SMS control, automation, remote management, and secure data transmission. The built-in Bluetooth 5.1 scanner supports Long Range and Extended Advertising, enabling communication with BLE sensors and MikroTik Bluetooth tags for telemetry and asset tracking.
The device includes GNSS support (GPS, Galileo, Glonass, BDS, QZSS) for tracking and positioning applications. A sensor-ready GPIO header (24V tolerant) allows simple automation and monitoring with digital and analog inputs.
This Global version features expanded LTE band support for North America and other non-EMEA markets. It supports both eSIM and Nano SIM for flexible carrier deployment and is PTCRB and AT&T certified. One Gigabit Ethernet port with 802.3af/at PoE-in and USB-C power input provide flexible powering options.
Deployment Solutions:
• Smart city infrastructure
• Retail kiosks and payment terminals
• LTE backup for Ethernet devices
• IoT gateways for BLE sensors
• Coffee and vending machine monitoring
• Industrial automation cabinets
• Environmental and utility monitoring
• Vehicle and asset tracking
Industries Benefiting:
• Industrial Automation
• Smart Cities
• Retail Technology
• Utilities
• Transportation
• IoT Integrators
- Product code
- EG25-G&KNe
- CPU
- ARM 32-bit 800 MHz
- Operating System
- RouterOS v7, License level 3
- Size of RAM
- 256 MB
- Storage size
- 256 MB, NAND
- Number of DC inputs
- 2 (PoE-In, USB Type-C (powering only))
- Max Power consumption
- 6 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 12-57 V
- 3G Category
- R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands
- 1 (2100MHz) / 2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 6 (850 MHz) / 8 (900MHz) / 19 (800 MHz)
- GNSS standards
- Galileo, GPS, Glonass, BDS, QZSS
- Dimensions
- 90 x 70 x 22 mm
- 2G Category
- Class12
- LTE Category
- 4 (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands
- 1 (2100 MHz)/ 2 (1900MHz) / 3 (1800 MHz) / 4 (1700MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 12 (700MHz) / 13 (700 MHz) / 18 (800 MHz / 19 (800 MHz / 20 (800 MHz) / 25 (1900MHz) / 26 (850MHz) /28 (700MHz)
- LTE TDD bands
- 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- TAC
- 01673800
- Operating Temperature
- -40°C to +70°C
- RAM type
- DDR
- Number of 1G Ethernet ports
- 1
- 2G bands
- 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- Bluetooth version
- 5.1
- LTE modem
- EG25-G
- Power adapter nominal voltage
- 5 V
- Power adapter nominal current
- 0.8 A
- GNSS interface model
- EG25-G
- RF connector type
- SMA female
- USB Type-C input voltage
- 5 V
- SIM slots
- Nano SIM, eSIM
