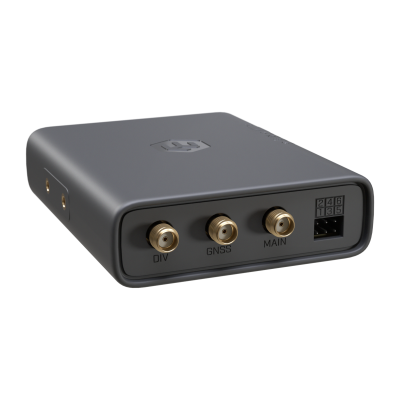

KNOT Embedded LTE4
KNOT Embedded LTE4 is a compact and durable industrial LTE Cat4 gateway designed for tight spaces and automated systems. It provides LTE, Bluetooth, and GNSS in one tiny device. Perfect for vending machines, kiosks, sensors, tracking systems, automation cabinets, and any IoT deployment that needs reliable mobile connectivity.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
KNOT Embedded LTE4 is a small but powerful unit built for integrators, industrial automation, and IoT system builders. It mounts directly on a DIN rail and offers solid LTE Cat4 connectivity combined with Bluetooth 5.4 and GNSS (GPS, GLONASS, Galileo, BeiDou).
It runs RouterOS, giving you full control — VPNs, firewall, SMS notifications, automation scripts, and remote management. With eSIM + Nano SIM support, GPIO for sensors, Gigabit Ethernet, and PoE-In, it adapts easily to almost any industrial environment.
Use it as:
-
A primary LTE gateway
-
A backup link for Ethernet devices
-
An IoT collection hub for BLE sensors
-
A GNSS-enabled tracking device
Built for harsh environments, small cabinets, smart city gear, and mobile applications.
Key Features
-
LTE Cat4 mobile connectivity (up to 150 Mbps downlink)
-
Bluetooth 5.4 for IoT sensors and beacons
-
GNSS support: GPS, GLONASS, Galileo, BeiDou
-
eSIM + Nano SIM slots
-
1x Gigabit Ethernet port
-
PoE-In (802.3af/at) + USB-C power input
-
DIN rail mounting supported
-
2x2 MIMO (Downlink)
-
24V-tolerant GPIO header for sensors
-
Rugged design for industrial environments
-
RouterOS v7 with automation, VPN, firewall, and remote management
Deployment Solutions:
-
Smart city sensors (parking, metering, environmental monitoring)
-
Retail kiosks, digital signage, payment terminals
-
Coffee and vending machine monitoring
-
Industrial automation cabinets
-
BLE sensor and beacon gateways
-
Utility and environmental monitoring
-
Vehicle and asset tracking with GNSS
-
LTE failover for Ethernet devices
- CPU
- ARM 32-bit Cortex A7 up to 1.2 GHz
- Operating System
- RouterOS v7, License level 3
- Size of RAM
- 256 MB
- Storage size
- 512 MB
- Number of DC inputs
- 2 (PoE-In, USB Type-C (powering only))
- 3G Category
- R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands
- 1 (2100MHz) / 8 (900MHz)
- GNSS standards
- BeiDou, Galileo, GPS, Glonass
- Dimensions
- 90 x 70 x 22 mm
- Number of SIM slots
- Nano SIM, eSIM
- 2G Category
- Class12
- LTE Category
- 4 (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands
- 1 (2100MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) /20 (800MHz) / 28A (700 MHz)
- LTE TDD bands
- 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- TAC
- 86554604
- Operating Temperature
- -40°C to +70°C
- RAM type
- DDR
- Number of 1G Ethernet ports
- 1
- 2G bands
- 3 (1800MHz) / 8 (900MHz)
- Bluetooth version
- 5.4
- LTE modem
- EC25-EU
- Power adapter nominal voltage
- 5 V
- Power adapter nominal current
- 0.8 A
- PoE-In
- 802.3af/at
- GNSS interface model
- EC25-EU
- PoE-In input Voltage
- 12-57 V
- RF connector type
- SMA female
- USB Type-C input voltage
- 5 V
