wAP LR9G kit
A compact, rugged LoRa® gateway and concentrator card for 915 MHz networks. Built-in GPS, enhanced sensitivity, and Wi-Fi make it ideal for outdoor IoT, smart agriculture, and telemetry.
US/Canada
We only offer IC Certified products. For international products, contact us.
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

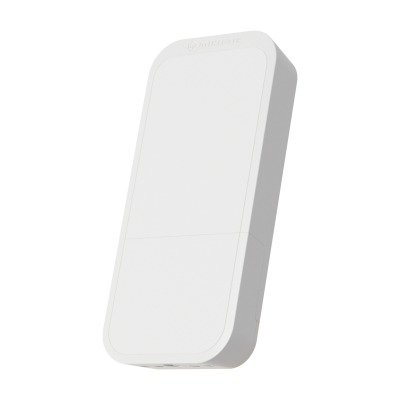

The wAP LR9G kit is an outdoor-ready LoRa® gateway with built-in GPS and improved 915 MHz sensitivity for long-range IoT deployments. Designed in MikroTik’s durable wAP housing, it supports passive PoE, Wi-Fi, and features SMA connectors for flexible antenna options. Paired with the R11e-LR9G concentrator card, this kit offers a complete solution for smart farming, remote monitoring, and industrial automation using public or private LoRa® networks.
- Product code
- RBwAPR-2nD&R11e-LR9G
- CPU architecture
- MIPSBE
- CPU
- Single-core QCA9531 600 MHz
- Operating System
- RouterOS v7, License level 4
- Size of RAM
- 64 MB
- Storage size
- 16 MB, Flash
- Number of DC inputs
- 3 (PoE-In, Automotive, DC jack)
- DC jack input Voltage
- 9-28 V
- Max Power consumption
- 7 W
- GNSS standards
- GPS
- Dimensions
- 185 x 85 x 30 mm
- MiniPCI-e slots
- 1
- Automotive input Voltage
- 12-30 V
- Operating Temperature
- -40°C to +60°C
- Wireless Standards
- 2.4 GHz
- Antenna gain
- 2 dBi
- Antenna beam width
- 360°
- RAM type
- DDR2
- Wireless interface model
- QCA9531
- Number of 100M Ethernet ports
- 1
- LoRa band
- 915 MHz
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 0.8 A
- Protocols
- 802.11b/g/n
- PoE-In
- Passive PoE
- GNSS interface model
- MT3337V
- Antenna connector
- SMA female
- Max Rx sensitivity
- -141 dBm
- PoE-In input Voltage
- 9-28 V
