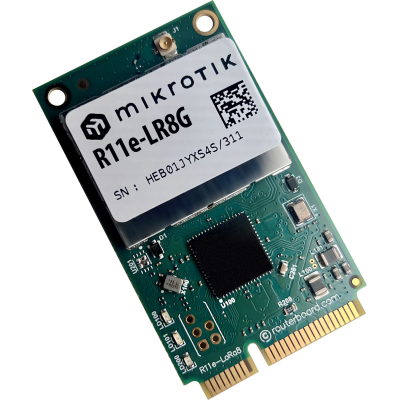

MikroTik R11e-LR8G LoRa® 868 MHz miniPCIe Card
The MikroTik R11e-LR8G is a miniPCIe card that adds LoRa® connectivity at 868 MHz to any compatible MikroTik device with a mini PCIe slot. Featuring enhanced 868 MHz receive sensitivity for reliable long-range communication, an integrated GPS chip, and a compact cost-effective design, it is ideal for IoT deployments of any scale. The card is fully compatible with The Things Network, making it straightforward to get LoRa®-based IoT projects up and running quickly.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik R11e-LR8G is a miniPCIe LoRa® card designed to bring long-range, low-power IoT connectivity to any MikroTik device equipped with a mini PCIe slot. Operating at 868 MHz, it delivers enhanced receive sensitivity for effective long-range communication, making it well-suited for wide-area IoT sensor networks, smart city applications, agricultural monitoring, asset tracking, and other IoT deployments where devices need to communicate across significant distances.
The card features an integrated GPS chip with a uUFL connector for an external GPS antenna, enabling location-aware IoT applications without requiring additional hardware. Its compact and efficient design makes integration into existing MikroTik setups straightforward, and its cost-effective performance makes it a practical choice for IoT projects at any scale — from small pilot deployments to larger network rollouts.
The R11e-LR8G is ready to work with The Things Network, the well-established open-source LoRa® infrastructure that provides free network coverage and a wide ecosystem of applications. This makes it easy to get an IoT deployment operational within a day, with a clear upgrade path to enterprise-grade infrastructure via The Things Industries when needed.
Built for demanding environments, the card is rated for operation between -40°C and 70°C and carries CE and RoHS certifications, making it suitable for outdoor and industrial use cases.
Key Specifications at a Glance
- Product Code: R11e-LR8G
- Form Factor: miniPCIe
- Frequency: 868 MHz (LoRa®)
- Integrated GPS: Yes, with uUFL RF connector
- Max Power Consumption: 1.3 W
- Tested Ambient Temperature: -40°C to 70°C
- MTBF: Approximately 100,000 hours at 25°C
- IP Rating: IP00
- Certifications: CE, RoHS
- The Things Network Compatible: Yes
- Product code
- R11e-LR8G
- Tested ambient temperature
- -40°C to +70°C
- Max Power consumption
- 1.3 W
- Frequency
- 863-870 MHz (EU863-870, RU864-870, IN865-867)
- Supported class
- A and C
- RF Output power
- 863-870 MHz 27 dBm
- Receive max sensitivity
- -141 dBm
- Range
- Up to 15 km in rural enviroment and up to 2 km in urban enviroment when using MikroTik LoRa® 6.5 dBi antenna kit
- Interface
- Mini-PCle
- Baseband chip
- SX1302
- Listen before talk
- Yes
- GPS receiver
- Yes
