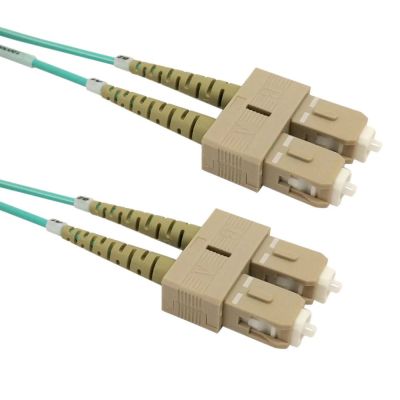

OM4 Multimode Duplex SC/SC 50 Micron 3m
This 50 micron (OM4) laser optimized fiber optic cable is made with Corning glass fiber. It has 2mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The Phantom Cables SC/SC Multimode Duplex 50 Micron OM4 Aqua Fiber Cable is built for reliable, high-speed fiber optic network connections. This laser-optimized 50/125 micron OM4 cable is made with Corning glass to help provide stable data transmission and strong network performance.
It comes with SC Duplex Male connectors on both ends, making it ideal for connecting fiber equipment in data centers, enterprise networks, LAN systems, telecom rooms, CATV, FTTx, and communication rooms.
The cable has a 2mm aqua jacket rated LSZH/OFNR, offering low-smoke zero-halogen protection and riser-rated safety for indoor installations. Each cable is 100% interferometer tested and supports high-speed applications including 10Gbps, 40Gbps, 100Gbps, and higher.
Key Features
SC Duplex Male to SC Duplex Male connectors
OM4 50/125 micron multimode fiber
Laser-optimized fiber cable
Made with Corning glass
Aqua 2mm LSZH/OFNR jacket
Ceramic connector ferrules
Low insertion loss: less than 0.3 dB at 1300nm
Supports 10Gbps, 40Gbps, 100Gbps, and higher speeds
100% interferometer tested
RoHS compliant
Conflict mineral compliant
Operating temperature: -10°C to +70°C
Limited lifetime warranty
Ideal For
This SC/SC OM4 duplex fiber patch cable is ideal for data centers, LAN infrastructure, telecom rooms, fiber distribution systems, CATV, FTTx, enterprise networks, and high-speed optical network installations.
- Product code
- FO-454B
