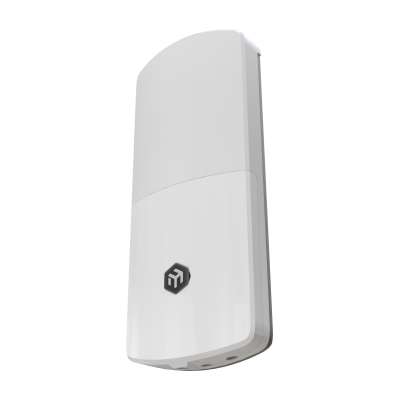

FTC21-ups
The MikroTik FTC21-ups is a weatherproof IP67 fiber-to-copper converter with built-in battery backup for power resilience at the network edge. Featuring a 2.5G SFP port, two Gigabit Ethernet ports, and support for 802.3af/at PoE-in and passive PoE-out, it keeps your network link stable during short outages and voltage drops. Running SwOS Lite with VLAN, SNMP, and ACL support, it is ideal for outdoor deployments and CCTV installations.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The FTC21-ups is a smart fiber-to-copper converter designed for unstable power environments. With an IP67 weatherproof enclosure, it is built for outdoor installations where reliability is critical.
Unlike standard media converters, the FTC21-ups runs SwOS Lite, offering advanced management features such as interface monitoring, VLAN support, SNMP reporting, traffic shaping, and Access Control Lists for Layer 2–4 packet filtering.
What makes it unique is the built-in dual Li-Ion 18650 battery system. The batteries are designed to survive short power outages, brownouts, and voltage drops, preventing link renegotiation and unnecessary device reboots. The battery system is intelligently managed and activates on first power-up.
The device includes one 2.5G SFP port and two Gigabit Ethernet ports. It supports 802.3af/at PoE-in and provides passive PoE-out (24V or 48V selectable) on Ether2, making it ideal for powering CCTV cameras or outdoor wireless devices.
Deployment Solutions:
• Outdoor fiber termination points
• CCTV camera installations
• Rural and edge network deployments
• Industrial and utility sites
• Power unstable environments
Industries Benefiting:
• Security and Surveillance
• Telecommunications
• Industrial Networking
• Transportation
• Smart City Infrastructure
- Product code
- FTC21-ups
- Switch chip model
- 88E6341
- Operating System
- SwOS
- Number of DC inputs
- 2 (PoE-In, DC jack)
- DC jack input Voltage
- 24-57 V
- Max Power consumption
- 28 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 48-57 V
- PoE out
- Passive PoE 24 or 48 V, configured via a hardware switch (Ether2)
- Dimensions
- 268 x 113 x 44 mm
- Operating Temperature
- -40°C to +70°C
- Number of 1G Ethernet ports
- 2
- IP rating
- IP67
- Power adapter nominal voltage
- 48 V
- Power adapter nominal current
- 0.95 A
- Number of 1G SFP ports
- 1 (2.5G supported)
- Low voltage PoE-Out current limit
- 0.625 A
- High voltage PoE-Out current limit
- 0.315 A
- Max power consumption (without attachments)
- 3 W
- Battery
- 2x Li-Ion NCA, 18650 (3.6V 2500mAh)
